Engineered for European pallet standards (EPAL 1/2), heavy unit loads, and seamless automated integration.
Germany stands as the central intralogistics powerhouse of Europe. With high land costs across major logistics hubs such as North Rhine-Westphalia (NRW), Bavaria, Baden-Württemberg, and Hamburg, German logistics operators, 3PL providers, and automotive manufacturers face unmatched pressure to maximize clear-height utilization, ensure absolute structural safety, and maintain rapid material turnover.
Adjustable Pallet Racking (APR) systems engineered for the German market must seamlessly accommodate standard European handling units, specifically EUR 1 / EPAL 1 pallets (800 x 1200 mm) and EUR 2 / EPAL 2 pallets (1200 x 1000 mm). To survive the rigorous operation cycles of modern automated guided vehicles (AGVs), narrow-aisle (VNA) stackers, and high-frequency reach trucks, structural stability, precise beam deflection ratios, and high impact resistance are mandatory.
Information Gain Insight: Unlike standard global commodity racking, industrial racking exported to Germany requires strict structural compliance under DIN EN 15512 (Structural Design of Adjustable Pallet Racking) and DIN EN 15635 (Application and Maintenance of Storage Equipment), guaranteeing safety under maximum permissible beam deflection of less than L/200 under full load.
As direct-from-factory OEM manufacturers and international exporters, we engineer modular adjustable racking systems configured to exceed structural norms while delivering cost-efficient price-to-performance ratios for European buyers.
Every profile cold-formed in our plant is validated through Finite Element Analysis (FEA) and static calculations.
Utilizing premium S355MC and S235JR high-yield structural steel coils. Upright posts (80x70, 90x70, 100x70, 120x95 profile series) feature continuous cold-roll forming with teardrop/European hook connection geometry for maximum rigidity.
Designed to comply fully with German Trade Association regulations (DGUV Regel 108-007). Features positive safety locking pins (minimum 4.8 grade steel) to prevent accidental beam dislodgement caused by forklift mast errors.
Finished on our in-house 150-meter automated electrostatic powder coating line. Surface prep includes multi-stage degreasing and iron phosphate pretreatment. High-durability coatings available in standard RAL 5010 (Gentian Blue) and RAL 2004 (Pure Orange).
The matrix below outlines the standard structural engineering choices available for German industrial procurement:
| System Parameter | Standard Selective APR | Radio Shuttle Racking | Mezzanine Platform Rack |
|---|---|---|---|
| Target Pallet Format | EPAL-1 (800x1200), EPAL-2 (1000x1200) | EPAL-1, EPAL-2, Custom Heavy Drums | Hand-loaded Cartons & Pallets |
| Load Capacity / Level | 1,000 kg – 4,500 kg per pair of beams | Up to 1,500 kg / pallet position | 300 kg – 1,000 kg / m² floor load |
| Upright Profiles (mm) | 80x70x2.0, 90x70x2.0/2.5, 100x70x2.5 | 100x70x2.5, 120x95x3.0 Heavy Duty | 100x100 Heavy Square Tube / Upright |
| Beam Profiles (mm) | 80x50, 100x50, 120x50, 140x50 Box Beams | Specialized Shuttle Guide Rails | Primary I-Beams + C-Channel Joists |
| Deflection Limit | < L/200 (DIN EN 15512 standard) | < L/250 (Precise shuttle track movement) | < L/300 (Sub-floor walking comfort) |
| Safety Certification | ISO9001, CE, FEM 10.2.02 compliant | CE Certified Shuttle, ISO9001 | EN 1090 Structural Steel Execution |
Tailored racking architecture serving key sectors in Germany’s industrial engine.

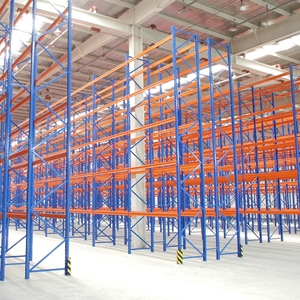

High-capacity selective beam racking equipped with heavy-duty drop-in wire mesh decking or steel cross beams. Ideal for heavy stamping dies, engine blocks, and containerized components in regions like Stuttgart and Wolfsburg.
Galvanized upright frames combined with radio shuttle racking for deep-freeze storage (-30°C). Maximizes thermal volume efficiency, drastically reducing per-pallet refrigeration power costs for food and pharma distribution hubs.

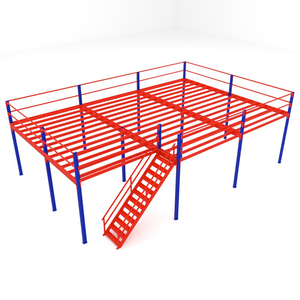

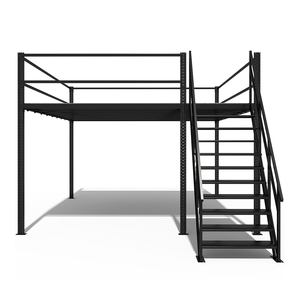

Interlocking heavy-duty mezzanine racking systems combined with integrated conveyor gates and pick modules. Doubles or triples usable floor space in fast-moving omnichannel retail operations.
With over two decades of dedicated engineering and material handling production, our factory operates as a direct OEM partner for warehouse project contractors, system integrators, and industrial equipment importers across Europe.
Clear answers to procurement, structural compliance, and import logistics questions.
Yes. Our structural calculations and design layouts adhere to DIN EN 15512 for structural design, DIN EN 15620 for tolerances and clearance, and DIN EN 15635 for operation and maintenance guidance. Full material test certificates (MTC) and static calculation documentation can be provided for your structural engineer (Statiker) review.
We require your warehouse building dimensions (Length x Width x Clear Height), building floor slab specifications, column positions, pallet size and weight (e.g., EPAL-1 with 1,200 kg load height including pallet), and the operational specifications of your forklifts (VNA, Reach truck, or Counterbalance with maximum lift height and aisle width requirement).
Absolutely. While standard colors like RAL 5010 (Blue), RAL 2004 (Orange), RAL 7035 (Light Grey), and RAL 7016 (Anthracite Grey) are always available, our automated powder coating line can execute any custom RAL color specification upon request.
Uprights and beams are bundled into tight, rigid packs with internal structural wood block separators. All metal-to-metal contact points are shielded with cardboard corner guards, fully shrink-wrapped in waterproof plastic film, and equipped with desiccant packs inside the shipping container to prevent condensation rust during long sea transit.
Yes. We specialize in custom profile matching. By providing sample photos, hole pitch dimensions, upright depth profiles, and beam connector pin configurations, our technical department can produce 100% compatible replacement parts or extension bays.
Work directly with an experienced racking manufacturer. Receive a complimentary CAD layout design, structural load calculation, and factory-direct quotation tailored to your exact facility requirements.
