Factory-direct warehouse racking & material handling equipment — 20+ years of manufacturing experience for global B2B buyers.

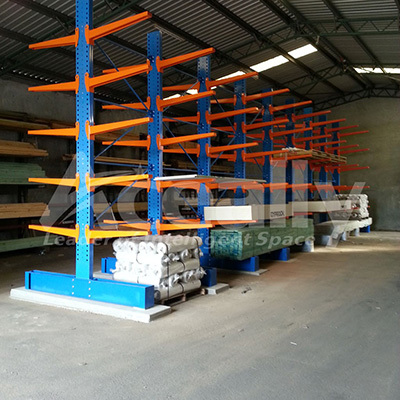

At Rack Pricing Storage Solutions Co., Ltd., we design, engineer, and manufacture industrial heavy-duty cantilever pallet racking engineered specifically to handle long, heavy, or irregularly shaped materials. Unlike conventional pallet racks, cantilever systems eliminate front column obstructions, enabling unobstructed forklift loading for steel pipes, timber lumber, PVC tubing, aluminum profiles, sheet metal, and bulky furniture.
Utilizing high-strength structural Q235B and Q355B cold-rolled steel, our cantilever systems are configured in single-sided or double-sided layouts with customizable arm lengths, upright heights, and load capacities ranging from 300kg to over 2,500kg per arm.
Factory-direct storage systems optimized for industrial distribution centers, steel service yards, and building material suppliers.

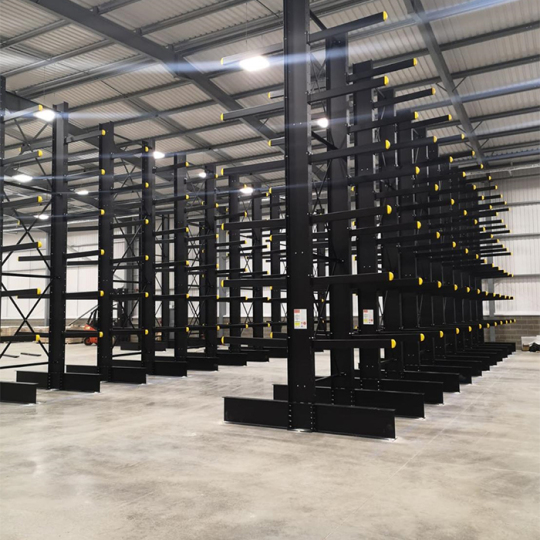

Designed for heavy steel pipes, industrial tubing, and bar stock with removable pipe retaining stops to prevent rolling.

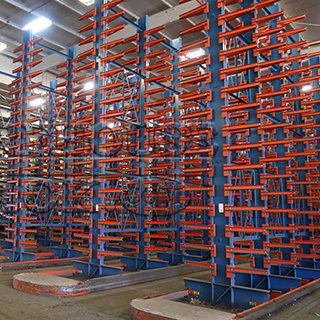

Modular warehouse cantilever storage systems engineered for flexible height adjustments and variable load profiles.
Custom-built column and arm profiles for specialized lumber yards, plastic pipe distributors, and heavy manufacturing plants.

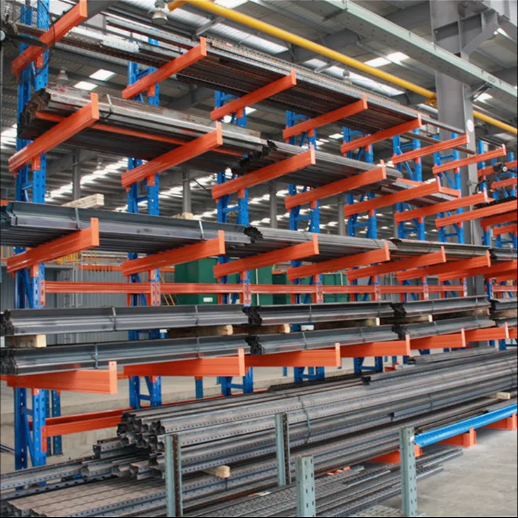

Space-saving wall-adjacent storage units offering clean access for side-loading forklifts and overhead cranes.

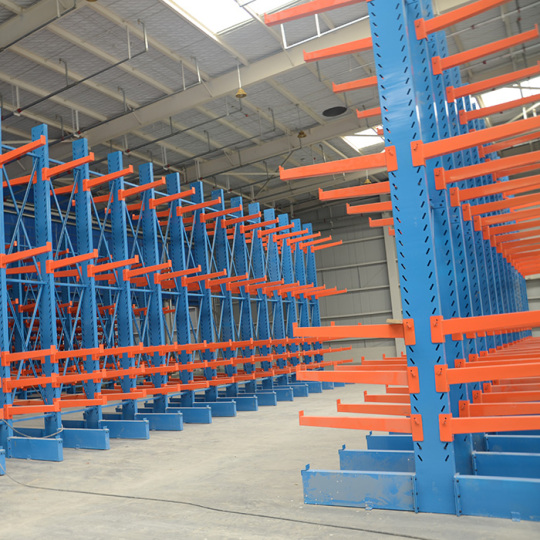

Heavy-gauge H-beam cantilever columns built to withstand severe mechanical impacts in harsh industrial environments.

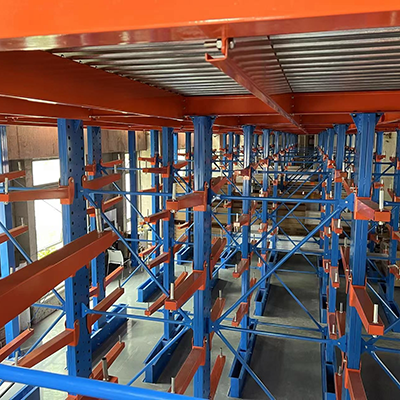

Maximizes central floor space by providing accessible storage arms on both sides of the vertical column structure.
Our engineering team designs cantilever systems compliant with global B2B material handling requirements.
| Component Parameter | Light / Medium Duty Cantilever | Heavy Duty Structural H-Beam Cantilever |
|---|---|---|
| Raw Material | Q235B Cold Rolled Steel Profile | Q355B Hot Rolled Structural H-Beam Steel |
| Load Capacity (Per Arm) | 300 kg – 800 kg | 1,000 kg – 2,500+ kg |
| Standard Upright Heights | 2,000mm, 3,000mm, 4,000mm | 4,500mm, 6,000mm, 8,000mm+ |
| Arm Length Options | 500mm, 800mm, 1,000mm, 1,200mm | 800mm, 1,200mm, 1,500mm, 1,800mm |
| Surface Protection | Electrostatic Powder Coating (RAL Colors) | Powder Coating or Hot-Dip Galvanizing (Outdoor) |
| Safety Accessories | End Stops, Guide Rails, Base Protectors | Removable Pipe Pins, Decking Mesh, Guide Rails |
Key information for international procurement teams, warehouse managers, and B2B importers.
Need a customized cantilever racking design for your warehouse or project? Send your building floor plan, payload specs, and material lengths to our engineering team.
