Precision-manufactured structural steel racks engineered for heavy-duty industrial storage, cold chain environments, and automated shuttle logistics.

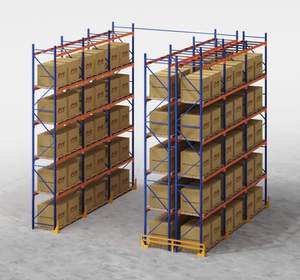

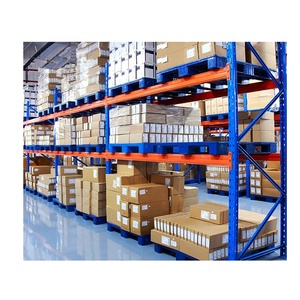

In modern industrial logistics, selecting an optimal storage architecture directly dictates operational throughput, floor space efficiency, and long-term facility safety. Single Row Pallet Racking (frequently designated as Single-Deep Selective Racking) serves as the foundational backbone for distribution centers demanding 100% SKU selectivity and uninterrupted forklift accessibility. Unlike multi-deep or drive-in systems that trade item accessibility for density, single-row configurations permit logistics operators to store, retrieve, and cycle any individual pallet without moving adjacent stock.
Engineered from high-tensile cold-rolled steel profiles (Q235B and Q355B structural grades), modern single-row racking relies on precision structural mechanics. Vertically upright frames are interconnected via heavy-duty horizontal and diagonal bracing members using structural grade 8.8 bolts. The beam-to-column connection utilizes multi-claw connector brackets engineered with automatic safety lock pins to prevent accidental dislodgement caused by upward forklift boom strikes. By utilizing single-entry access aisles, facility planners minimize inventory handling bottlenecks while capitalizing on full vertical clearance.
Direct forklift access eliminates "honeycombing" and secondary pallet relocations, boosting throughput speed by up to 45% over high-density block stacking.
Beam levels adjust at 50mm, 75mm, or 76.2mm pitch increments, accommodating changing pallet heights, crate dimensions, and heavy equipment seamlessly.
Designed under ANSI MH16.1 and FEM 10.2.02 codes, equipped with heavy-duty anchor plates, footings, and frame ties for high-risk seismic zones.
When selecting a single-row racking vendor, procurement officers and structural engineers must evaluate beam deflection ratios, column profile geometries, and steel yield strengths. The allowable beam deflection according to global standards is strictly capped at L/200 (where L is the clear beam length). Operating within this tolerance guarantees structural rigidity under full operational loads ranging from 1,000 kg up to 3,000 kg per level.
| System Profile Specification | Light to Medium Duty | Heavy Industrial Standard | Extra Heavy / VNA Duty |
|---|---|---|---|
| Column Section (mm) | 80 × 60 × 1.8 / 2.0 | 90 × 70 × 2.0 / 2.3 | 100 × 70 / 120 × 95 × 2.5–3.0 |
| Load Capacity / Level | 500 kg – 1,200 kg | 1,500 kg – 2,500 kg | 2,500 kg – 4,500 kg |
| Beam Profiles Available | Box Beam (80 × 50 to 100 × 50) | Box Beam (110 × 50 to 140 × 50) | Step / Structural C-Beam (160+) |
| Surface Protection | Powder Coated (60–80 µm) | Thermoset Epoxy (80–100 µm) | Hot-Dip Galvanized (HDG >65 µm) |
| Safety Factor Coefficient | 1.5 : 1 Minimum | 1.65 : 1 Standard | 1.8 : 1 Reinforced Seismic |
Single row racking systems wall-tied against building columns or configured as single-aisle runs maximize space along warehouse perimeters. Furthermore, integrating safety accessories—such as wire mesh decking, roll-out sheet metal drawers, and HDPE column guards—further extends the operational life cycle of the installation while protecting workforce personnel.
As international supply chains evolve toward lean warehousing and automated fulfillment, procurement strategies for single-row pallet racking systems are experiencing significant paradigm shifts:

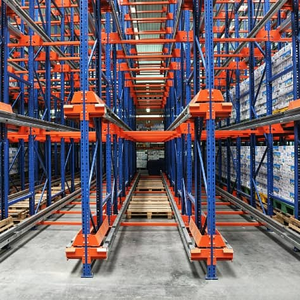

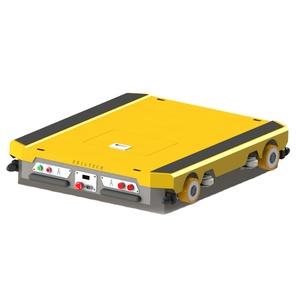

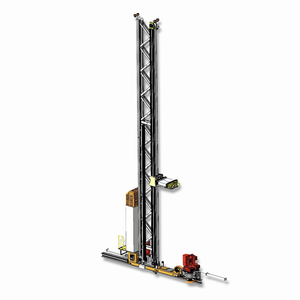

Buyers are increasingly migrating from purely manual single-row setups to hybrid automated systems. Integrating Radio Shuttle Carts and Single Column Miniload AS/RS Stacker Cranes into single-deep structural racking enables fulfillment hubs to combine the 100% selectivity of traditional single-row storage with the speed of robotic retrieval. This hybrid approach reduces manual forklift labor expenses while boosting throughput accuracy.
Modern B2B importers and project contractors prioritize sustainable production. Leading single-row rack factories are transitioning to eco-friendly non-toxic electrostatic epoxy powder coating lines with zero Volatile Organic Compound (VOC) emissions. Furthermore, closed-loop water treatment systems and steel traceability (utilizing certified recyclable mill steel) are now mandatory qualification criteria for global tenders.
To reduce supply chain risks, enterprise buyers require modular rack profiles that integrate smoothly into existing installations. Factory offerings now feature universal connector geometry—such as Teardrop, Redirack, and Speedlock compatibility. This ensures buyers can seamlessly expand existing distribution infrastructure without replacing whole racks.
The industrial storage equipment sector is rapidly digitalizing. Single-row racking is no longer viewed merely as static steel framing, but as an active component within smart logistics ecosystems:
Future single-row warehouse installations are adopting embedded IoT strain gauges and laser collision sensors attached directly to upright baseplates. These sensors stream real-time structural health data to Warehouse Management Systems (WMS), immediately flagging beam deflections, baseplate shifts, or forklift impact damage that exceeds safety limits defined in EN 15635 standards.
Additionally, the adoption of Very Narrow Aisle (VNA) single-row configurations guided by wire- or laser-guided turret trucks allows facilities to compress aisle widths down to 1.6 meters. This spatial optimization increases cubic storage density by 40% to 60% compared to conventional 3.0-meter counterbalanced forklift aisles, providing a high return on investment (ROI) for urban logistics centers where land prices remain elevated.
With over two decades of dedicated manufacturing experience, Rack Pricing Storage Solutions Co., Ltd. stands as a premier direct manufacturer and exporter of warehouse racking, steel shelving, and automated material handling equipment. Our integrated manufacturing hub controls every step of production—from raw coil slitting to cold roll-forming, robotic welding, surface preparation, powder coating, and export bundling.
Our continuous automated cold roll-forming mills guarantee millimeter-precise profile punching and minimal material strain, delivering high structural load capacities.
Equipped with a 120-meter automated powder coating line featuring multi-stage phosphating pretreatment, delivering salt-spray resistance exceeding 500 hours.
Our structural engineering team provides complimentary 2D CAD layout drawings, 3D spatial renderings, and Finite Element Analysis (FEA) capacity calculations.
Components are part-number labeled, edge-protected with heavy-duty corner guards, and bundled securely into customized steel racks to maximize container space.
Clear, technical answers to common questions asked by B2B buyers, project contractors, and logistics managers when sourcing single-row pallet racking systems.
