Precision-manufactured storage racks, automated shuttle platforms, and robotic material handling components tailored for climate-controlled and cleanroom warehouse environments.
Automated pallet car technology designed for maximum volume utilization in pharmaceutical cold-chain vaults and GDP-certified storage.
Contact Us

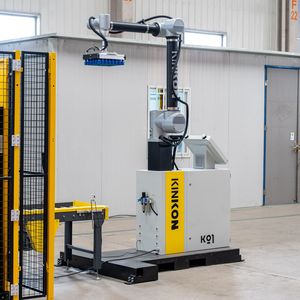

Precision robotic palletizer arm designed for aseptic packaging, plastic/metal/glass case stacking, and high-speed line automation.
Contact Us
High-density radio shuttle rack engineered for temperature-sensitive food, beverage, and raw pharmaceutical ingredient buffer storage.
Contact Us
Reinforced steel beam racking engineered for oversized pallets, bulk API containers, and heavy machinery parts storage.
Contact Us
Modular industrial steel storage units featuring high load capacities and durable electrostatic powder coatings for heavy warehousing.
Contact Us
Space-optimized double-deep structure maximizing warehouse capacity while supporting heavy pallet loads up to 3000kg per beam level.
Contact Us
Very Narrow Aisle (VNA) layout matched for specialized reach trucks to achieve maximum floor-to-ceiling volume density.
Contact Us
Versatile single-deep selective steel racking allowing 100% immediate pallet accessibility for fast-moving pharmaceutical distribution.
Contact UsIn the modern biopharmaceutical and medical logistics sector, warehouse storage infrastructure is no longer merely a structural steel framework; it is a critical validated component of the cold-chain control environment. Pharmaceutical pallet racking systems must comply with rigorous global mandates including Current Good Manufacturing Practice (cGMP), EU Good Distribution Practice (GDP), and FDA 21 CFR Part 211 standards. Designing and manufacturing storage racks for active pharmaceutical ingredients (APIs), finished dosage forms, biological products, and medical devices requires strict control over metallurgy, surface finish, structural deflection, cleanliness, and seismic resilience.
Pharmaceutical cold rooms demand uninterrupted thermal circulation. Custom upright punching patterns and wire mesh decking ensure unhindered horizontal and vertical airflow, preventing localized warm spots and micro-climates.
Every structural profile features smooth, non-porous powder coating or SS304/SS316L stainless steel finishes. This prevents dust accumulation, resists aggressive sanitizing chemicals, and eliminates microbial harborages.
Integrated automated radio shuttle systems and live gravity flow racks guarantee absolute inventory rotation compliance, reducing stock obsolescence and accelerating batch recall traceability.
Under standards set by the Rack Manufacturers Institute (RMI ANSI MH16.1) and European structural code EN 15512, pharmaceutical racking design enforces strict beam deflection caps of L/240 to L/300. Cold-rolled structural steel profiles (typically high-tensile Q235B or Q355B grade steel) undergo rigorous stress analysis via 3D Finite Element Analysis (FEA). This ensures structural stability during seismic loading events and heavy dynamic operation by reach trucks and Automated Guided Vehicles (AGVs).
| Racking Parameter | Standard Industrial Spec | Pharmaceutical GDP & Cleanroom Spec | Compliance Standard |
|---|---|---|---|
| Surface Coating | Standard Epoxy Powder (60-80µm) | Antimicrobial Silver-Ion Powder / Stainless 316L | FDA / EU GDP Annex 15 |
| Beam Deflection Cap | L/200 Max Deflection | L/240 to L/300 Precision Deflection Limit | ANSI MH16.1 / FEM 10.2.02 |
| Sub-Zero Impact Strength | Standard Room Temperature Steel | Charpy V-Notch Tested Cold-Room Steel (-30°C) | EN 10025-2 / ISO 148-1 |
| Sanitization Resilience | Basic Water/Detergent Wash | Resistant to Isopropyl Alcohol (IPA), VHP & Quat Cleaners | ISO 14644 Cleanroom Class 5-8 |
| Traceability & Batching | Manual Location Labels | Barcode / RFID Reader Mount Compatible | GS1-128 / 21 CFR Part 11 |
As global supply chains transition toward ultra-cold storage, biological therapeutics, and full warehouse automation, rack procurement criteria are rapidly evolving.
Rising energy costs in deep-freeze facilities (-25°C to -80°C) drive adoption of High-Density Automated Storage and Retrieval Systems (AS/RS). Automated pallet shuttle systems increase storage volume utilization by up to 85% compared to conventional selective racks, drastically lowering cold-room HVAC power consumption per pallet site.
Future pharmaceutical racking avoids traditional open upright profiles that collect particulate matter. Modern designs feature sealed tubular uprights, continuous laser welds, and sloped top beams that minimize dust accumulation and facilitate rapid cleaning in ISO Class 7/8 production buffer zones.
Next-generation racking installations incorporate embedded strain gauges and IoT collision sensors. These smart telemetry devices transmit real-time data regarding forklift impacts, structural overload warnings, and ambient micro-climate thermal mapping directly to the warehouse control system (WCS).
Recommended milestone workflow for global pharmaceutical procurement managers and engineering contractors.
Determine warehouse footprint, clear ceiling height, slab load capability, floor flatness class (FF/FL), ambient thermal range, and SKU turnover velocity.
Engineers produce 2D/3D BIM layouts and perform Finite Element Analysis (FEA) to determine beam depth, upright gauge, and aisle clearance for material handling equipment.
Review compliance requirements against local seismic codes, EN 15635 rack safety rules, NFPA 13 fire sprinkler clearance, and cleanroom sanitization protocol.
Precision cold roll forming, robotic welding, electrostatic powder coating, rigorous quality inspection, and part-numbered export bundling.
Backed by over 20 years of continuous manufacturing innovation, Rack Pricing Storage Solutions Co., Ltd. delivers direct factory engineering expertise for international pharmaceutical storage projects.
We operate fully integrated in-house electrostatic powder coating lines. We offer custom RAL color matching, heavy-duty anti-corrosion pretreatments, and antimicrobial silver-ion additives engineered specifically for hygienic pharmaceutical cleanrooms.
Our experienced structural engineering team provides complimentary CAD drawings, structural calculation packs, and pallet position optimization to guarantee seamless facility integration prior to production contract execution.
Uprights, beams, and structural accessories are steel-strapped, protected with protective film, clearly labeled with part identification numbers, and loaded with ocean freight container space optimization to reduce landing freight costs.
Direct technical responses to common questions raised by pharmaceutical facility managers, logistics consultants, and procurement buyers.
