Direct factory manufacturing of heavy-duty pallet racking, cold room mobile storage, VNA narrow aisle frames, and automated shuttle systems engineered for global supply chains.
Modern logistics real estate is increasingly defined by high land costs, aggressive order fulfillment cycles, and strict cold-chain energy constraints. For enterprise warehouse managers, 3PL providers, and industrial distributors, traditional selective racking often falls short by leaving up to 60% of vertical and horizontal cubic space unutilized due to excessive aisle requirements. Pallet accumulation racking systems—incorporating Radio Shuttle technology, Live Pallet Flow, Push-Back mechanisms, and Deep Drive-In structural frameworks—represent the benchmark in high-density volumetric efficiency.
As a premier tier-one manufacturer and global exporter with over 20 years of dedicated engineering experience, our organization transforms static logistics centers into dynamic high-density storage engines. By integrating cold-formed structural steel profiles with micro-alloyed steel formulations, our accumulation systems facilitate seamlessly controlled LIFO (Last-In, First-Out) and FIFO (First-In, First-Out) material movement, driving warehouse volumetric utilization up to 85% while minimizing forklift travel times and operational carbon footprints.
Information Gain Insight: Selecting the optimal pallet accumulation system requires matching pallet dynamics (deflection rates, bottom-board configuration) with mechanical flow mechanisms. Automated Radio Shuttle systems yield a 40% reduction in forklift handling cycles compared to conventional Drive-In racks by eliminating the requirement for lift trucks to drive inside structural bays.
To assist procurement directors and facility engineers in identifying the optimal balance between SKU diversity, picking velocity, and density, the following table details the key structural parameters of core accumulation systems manufactured in our factory.
| System Type | Operating Principle | Volumetric Density | Forklift Interaction | Ideal Application |
|---|---|---|---|---|

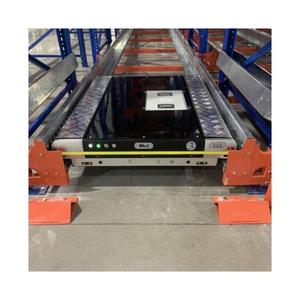

| Radio Shuttle Racking | Semi-automated robotic cart on internal rails (LIFO/FIFO) | Extreme (Up to 85%) | Stays at lane face; zero bay entry required | Cold storage, FMCG, high-volume batch SKUs |
| Live Pallet Flow Racking | Gravity roller beds with dynamic speed controllers (FIFO) | Very High (Up to 75%) | Separate loading & retrieval aisles | Perishable food, date-sensitive pharmaceuticals |
| Push-Back Cart System | Nested wheel carts on inclined structural rails (LIFO) | High (Up to 70%) | Pushes front pallets back during loading | Medium-turnover SKUs, 2 to 6 deep storage |
| Drive-In / Drive-Through | Continuous upright channels for lift truck entry (LIFO/FIFO) | High (Up to 65%) | Forklift operates inside structural rack frame | Bulk homogeneous items, seasonal buffer storage |
Overseas buyers face significant risk when dealing with non-manufacturing intermediaries, including unverified steel gauge tolerances, structural weld fatigue, inconsistent electrostatic powder coatings, and delayed shipment timelines. Our fully integrated production facilities mitigate these procurement risks through total end-to-end quality governance.
We operate precision cold-roll forming lines, automated punching matrices, and robotic welding stations to ensure millimeter-precise beam and upright profile tolerances.
Every accumulation project is engineered in strict accordance with EN 15635, FEM 10.2.02, ANSI MH16.1, and OSHA 29 CFR 1910 structural safety protocols.
Our in-house automated thermosetting powder coating line delivers superior 60–80 micron corrosion protection with custom RAL colors, ideal for harsh and cold-room environments.
Our structural engineering team provides complimentary 2D CAD layout schematics, 3D structural simulations, and floor slab load capacity calculations before contract signing.
Uprights, beams, and track components are color-coded, bundled with edge guards, wrapped in moisture-barrier film, and optimized for container cube space to reduce freight costs.
We supply standard teardrop, Redirack-compatible, and heavy-duty structural channel profiles to seamlessly integrate into existing warehouse infrastructure.
As global supply chains navigate labor scarcity, inflation in commercial space pricing, and net-zero sustainability mandates, procurement strategies for high-density pallet accumulation are undergoing a profound transformation. Strategic buyers are shifting from passive equipment purchasing to data-driven capital allocation focusing on lifecycle efficiency.
The traditional semi-automated Radio Shuttle system is rapidly evolving toward full autonomy. Modern accumulation setups incorporate AGVs and Autonomous Mobile Robots (AMRs) to deliver pallets directly to the accumulation lane face. The shuttle cart communicates via wireless WCS (Warehouse Control System) protocols to perform automatic deep-lane placement without human operator intervention, reducing warehouse operational labor requirements by up to 70%.
Cold storage energy expenditure accounts for a massive proportion of operating budgets. High-density accumulation racks reduce the total refrigerated volume required per pallet position by eliminating unnecessary aisles. Future procurement trends heavily favor ultra-dense pallet flow and shuttle accumulation configured with low-temperature resistant lithium-iron-phosphate battery packs operating down to -30°C without thermal degradation.
Supply chain agility requires logistics infrastructure to adapt rapidly to changing SKU dimensions. Fixed welding designs are being replaced by high-strength bolted beam-to-column connections featuring micro-adjustable profile increments. This modular architecture enables enterprises to adjust accumulation lane depths (e.g., converting from 4-deep push-back to 12-deep shuttle lanes) with minimal structural downtime.
The engineering foundation of pallet accumulation racking lies in metallurgical innovation, precision manufacturing tolerances, and integrated structural telemetry.
To reduce total deadweight while enhancing dynamic load capacity, modern manufacturing utilizes advanced high-strength micro-alloyed steel grades. Cold-formed columns produced from certified Q355B steel deliver exceptional yield strength, allowing thinner wall profiles without compromising buckling limits or deflection ratios under maximum rated loads (deflection within strict L/200 parameters).
Edge IoT sensors integrated into critical upright frames and shuttle guide rails represent the forefront of racking technology. These strain gauge sensors continuously measure dynamic structural deflection, impact forces from forklift bumps, and ambient operational stress. Automated notifications alert maintenance managers to potential structural fatigue before safety incidents occur, facilitating proactive compliance with EN 15635 inspection schedules.
Environmental regulations and extreme cold-room conditions are driving advances in pre-treatment chemical technology. Zirconium-based conversion coatings combined with electrostatic epoxy-polyester powder application replace traditional heavy-metal phosphatizing lines. This creates a superior mechanical bond that withstands severe impact and prevents sub-film corrosion creep in high-humidity facilities.
Below are detailed responses to the most critical technical, operational, and commercial questions raised by project engineers, logistics consultants, and procurement managers.
