Precision-engineered cold-rolled steel pallet rack configurations, heavy-duty stacking frames, and automated high-density shuttle storage systems optimized for high-throughput logistics hubs.
Modular foldable steel stacking rack frames offering up to 1,500kg payload per unit. Engineered for flexible bulk storage and dynamic warehouse layouts.

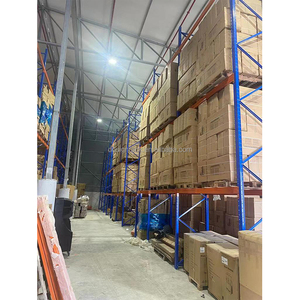

High-capacity selective rack configuration built from cold-rolled Q235B steel. Fully customizable beam lengths, frame depths, and electrostatic powder finishes.
Automated high-density shuttle storage solution supporting FIFO/LIFO inventory management. Maximizes vertical volume and reduces forklift travel cycles.
Ultra-durable structural alloy steel mobile rack modules designed for heavy-duty industrial storage, cold chain environments, and raw material logistics.
Multi-tier storage loft integrated directly onto structural upright frames. Doubles or triples usable facility floor space without vertical building expansion.
Specialized deep-reach beam placement configuration storing pallets two-deep per aisle. Increases storage density by up to 30% compared to standard selective setups.

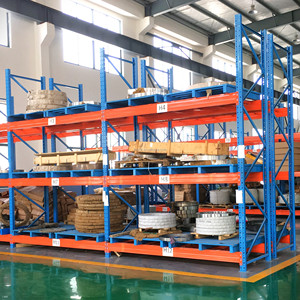

Versatile selective pallet rack components including teardrop and Redirack compatible profiles. Built for heavy forklift loading and continuous logistics cycles.
Engineered for extreme stability with verified finite element seismic performance. Features multi-hook beam connectors and heavy-gauge baseplate anchors.
In modern industrial logistics, selecting a reliable large load pallet racking factory and exporter requires rigorous technical evaluation far beyond surface price points. Rack Pricing Storage Solutions Co., Ltd. brings over two decades of engineering expertise to the design, roll-forming, and structural validation of industrial storage infrastructure. Every storage system leaving our manufacturing facilities is crafted from certified high-tensile cold-rolled steel (Q235B and Q355B grades), engineered to withstand extreme static load forces, operational impact vectors, and localized seismic acceleration levels.
The structural load capacity of selective pallet racking depends primarily on column geometry, beam profile section modulus ($Z_x$), and connection rigidity. Our engineering team utilizes advanced Finite Element Analysis (FEA) modeling software to simulate stress distribution across beam-to-upright connection nodes under full payload utilization. This ensures that deflections do not exceed $L/180$ under maximum allowable working loads, strictly conforming to ANSI MH16.1, RMI specifications, and European EN 15512 codes.
Technical Insight on Steel Grade Selection: By incorporating high-strength Q355B steel into our heavy-duty upright profiles, we achieve a minimum yield strength ($f_y$) of 355 MPa. This structural advantage permits thinner profile gauges without sacrificing safety factors (maintaining a mandatory 1.5 to 1.67 safety margin), effectively reducing overall steel deadweight while maximizing vertical racking height capabilities up to 15 meters.
A resilient warehouse pallet racking installation relies on precise component synergy. Our manufacturing lines produce specialized profiles tailored to regional structural standards and operational forklift requirements:
Continuous multi-stage roll-formed columns featuring 55mm to 75mm profile pitch. Engineered with stiffening ribs along the web to prevent torsional-flexural buckling under axial compression.
Dual C-profile interlocking weld structures providing exceptional resistance to lateral torsion. Equipped with 3, 4, or 5-hook heavy-gauge connector claws and automatic spring-lock safety pins.
Heavy-duty wire mesh inserts with underlying structural support channels. Improves overhead sprinkler water penetration, lighting dispersion, and secondary pallet stability per NFPA 13 rules.
Selecting the optimal warehouse layout demands a calculated balance between floor space utilization, SKU turnover velocity, and mechanical equipment investment. The comparative matrix below outlines key engineering criteria across our primary export product lines:
| Racking System Type | Storage Density | SKU Selectivity | Pallet Load Range | Forklift Compatibility | Primary Industrial Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Standard (40-50%) | 100% Immediate Access | 500kg – 4,500kg / Level | Counterbalance, Reach Truck | High-SKU Distribution, Retail Fulfillment |
| Double Deep Racking | High (60-65%) | 50% Immediate Access | 1,000kg – 3,000kg / Level | Deep-Reach Pantograph Truck | Cold Storage, Bulk Goods Warehousing |
| 4-Way Radio Shuttle (ASRS) | Ultra High (85%+) | Batch / System Controlled | 500kg – 1,500kg / Pallet | AGV / AMR & Standard Lift | Automated Logistics, FMCG Bottling Units |
| Rack-Supported Mezzanine | Very High (Vertical) | 100% Hand-Pick Access | 300kg – 1,000kg / m² Floor | Manual Cart, Vertical Conveyor | E-commerce Parts Picking, Apparel Hubs |
| Heavy Duty Stacking Racks | Flexible Dynamic | Block Stacking (3-5 High) | 1,000kg – 2,000kg / Unit | Standard Forklift Truck | Seasonal Overflow, Automotive Parts |
| Cantilever Racking | Specialized Linear | 100% Open Access | 500kg – 6,000kg / Arm | Side Loader, Heavy Reach | Steel Pipe, Timber, Aluminum Extrusions |
For international buyers, matching existing regional standards is vital during warehouse expansions. As a direct manufacturer, Rack Pricing produces exact-profile matches for North American Teardrop styles, Canadian Redirack designs, and European 50mm pitch adjustable systems. This guarantees seamless mechanical compatibility when adding new bays to existing racking footprints.
Quality control in high-capacity steel fabrication depends on process consistency. At our state-of-the-art production plant, raw structural steel coils undergo automated uncoiling, multi-station continuous roll-forming, precision CNC punching, and robotic MIG welding. This automated workflow eliminates dimension variances, guaranteeing that every beam connector and upright frame aligns perfectly during installation on job sites worldwide.
Durability in demanding industrial environments is heavily reliant on surface treatment. Rack Pricing operates a fully automated 260-meter continuous powder coating line utilizing an eco-friendly 9-stage pre-treatment process:
Chemical immersion removes all mill oils and oxidation, depositing a dense zino-phosphate conversion coating that locks adhesion deep into the steel substrate.
High-voltage electrostatic spray guns coat all steel geometry evenly, achieving a uniform dry film thickness (DFT) of 80 to 110 microns in standard RAL colors.
Baking at 200°C yields a scratch-resistant, impact-proof finish. Batches undergo 500-hour Salt Spray Testing (ISO 9227) and cross-hatch adhesion checks.
For outdoor applications, galvanized slotted angle shelving, or humid cold storage logistics, we provide Hot-Dip Galvanizing (HDG) conforming to ISO 1461 standards. This supplies zinc layer protection exceeding 65 microns, shielding steel structures against corrosion for decades.
As global supply chains shift toward automated fulfillment and localized micro-distribution hubs, warehouse storage requirements are rapidly evolving. Procurement managers and project engineering consultants must design racking infrastructure with future-proof scalability in mind.
Traditional forklift-operated selective racking is increasingly being modified or replaced by Autonomous Mobile Robot (AMR) compatible structures. High-density 4-way shuttle systems require millimetric tolerances on beam straightness and track leveling. As an experienced exporter, our manufacturing processes enforce tighter fabrication tolerances ($\pm 0.5\text{mm}$) to support seamless shuttle wheel travel and optical sensor navigation.
International enterprise buyers in Europe and North America now prioritize Scope 3 embodied carbon reduction. Future racking procurement contracts will increasingly mandate the use of recycled steel stock (EAF electric arc furnace production) and non-VOC thermosetting powder coatings. Rack Pricing is actively adopting green steel sourcing practices and closed-loop water treatment on our pretreatment coating lines.
With industrial land costs rising globally, warehouses are expanding vertically toward 15 to 25 meters. Vertical high-bay installations place extreme uplift and shear forces on floor slab anchor points. Modern design trends emphasize customized baseplate dampening, heavy-gauge seismic bracing arrays, and high-ductility steel alloys capable of absorbing lateral energy without brittle frame failure.
Safety compliance is paramount when operating high-bay storage racks holding thousands of tons of elevated inventory. Rack Pricing Storage Solutions Co., Ltd. builds and verifies all structural systems in compliance with recognized international codes:
Export Packaging & Container Logistics Optimization: To prevent ocean freight transit damage, all upright frames, beams, and shelf components are bundled in heavy protective film with cardboard corner guards. Component bundles are custom-dimensioned to maximize 40ft High Cube (40HC) container volume utilization, dropping shipping costs per pallet position by up to 15%.
Detailed answers to structural engineering, OEM customization, and export logistics queries raised by procurement teams and warehouse contractors:
Connect directly with our senior racking structural engineering team. We offer free warehouse CAD space planning, static load calculations, and comprehensive FOB/CIF export pricing for your facility project.
