Explore our precision-engineered dynamic and selective rack configurations designed for max density, high throughput rate, full compliance with international FEM and RMI standards, and long-term durability.

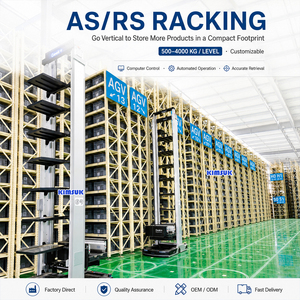

Flexible multi-deep AS/RS stacker crane racking engineered for fully automated warehouses and ultra-high density retrieval systems.
Cold-chain optimized industrial racking manufactured with cold-resistant steel for sub-zero food and beverage cold rooms.
Standard American teardrop profile pallet rack featuring punch hole precision, slide-in beam locking, and CE structural safety certification.

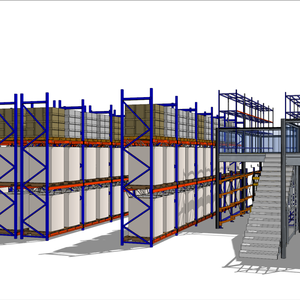

Heavy-duty structural upright steel profiles optimized with dynamic seismic dampening for high-risk earth movement industrial zones.

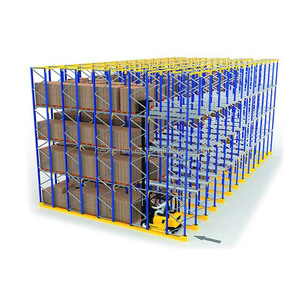

High-density LIFO/FIFO storage configuration with heavy-duty guide rails and adjustable shelf beams for maximum cubic floor utilization.
Factory-direct wholesale storage racks offering 100% pallet accessibility, adaptable shelf levels, and robust forklift guard protection.

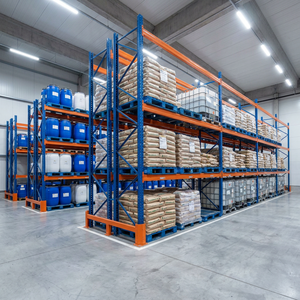

Premium Q235B steel Palettenregal racking engineered with custom layout services for distribution hubs and heavy machinery plants.

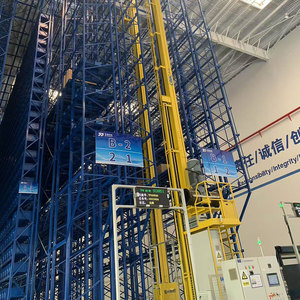

Advanced curved turn stacker crane integration for high-speed automated material handling and seamless warehouse execution.
As leading dynamic pallet racking manufacturers and global exporters, we remove operational risks through comprehensive in-house quality control and precision structural calculation.
We operate advanced continuous cold-roll forming lines for upright posts and box beams, maintaining strict dimensional tolerances of ±0.5mm across all structural lengths.
All structural profiles comply with EN 15635, FEM 10.2.02, ANSI MH16.1, and OSHA 29 CFR 1910 rules, ensuring easy building permit approvals globally.
Our continuous automatic powder coating line applies durable epoxy polyester finishes tested under ISO 9227 salt spray conditions for over 500 corrosion-free hours.
Every quotation is paired with a complimentary 2D/3D warehouse CAD layout, including precise beam deflection calculations and forklift turn radius optimizations.
Component bundling, part-number tagging, and protective steel strapping allow maximum container cube utilization, dramatically reducing sea freight unit costs.
Upright profiles and beam connectors undergo physical yield testing, shear load evaluation, and cyclic strain tests to prevent cataclysmic rack failures under full load.
Modern material handling demands a shift away from static warehouse layouts toward dynamic high-density storage platforms. As a globally certified manufacturer and exporter, our engineering group focuses on structural safety, flow dynamics, mechanical reliability, and structural yield optimization. Dynamic racking systems—encompassing Pallet Flow, Push-Back, Drive-In, and Automated Storage and Retrieval Systems (AS/RS)—transform underutilized vertical and horizontal cubic space into highly active, profit-generating fulfillment hubs.
The backbone of any dynamic pallet storage frame is its upright post geometry and metallurgy. In standard atmospheric warehouses, high-tensile cold-rolled steel grade Q235B provides optimal ductility and load-bearing endurance for beam spans up to 3600mm. For high-bay applications exceeding 10 meters in vertical elevation or heavy-duty dynamic flow channels carrying loads over 1500kg per pallet, high-yield Q355B steel is utilized to withstand localized torsional stress and dynamic impact loading caused by forklift operations.
Our upright profiles feature multi-bend cold-formed profiles (such as 80x70, 90x70, 100x70, and 120x95 profiles) engineered with 11 to 13 structural bends. This complex geometry dramatically enhances the radius of gyration, elevating buckling resistance under maximum vertical compression. Beam connections feature 3, 4, or 5-hook heavy-duty claw connectors punched with tapered safety pin locks to eliminate dislodgement risks as mandated by OSHA regulations.
In Pallet Flow and Dynamic Gravity Racking systems, inventory moves along inclined roller tracks engineered at precise gradient angles—typically between 2.5% and 3.5%. Gravitational acceleration must be carefully controlled to prevent high-velocity pallet impacts at the discharge face.
Racking structures operating in seismic risk zones require sophisticated Non-Linear Finite Element Analysis (FEA) to simulate dynamic wave propagation during ground motion. Dynamic racking arrays differ from static frames due to the potential motion of stored inventory. Our engineering team incorporates dynamic dampers, reinforced horizontal and diagonal frame bracing, and heavy-duty seismic baseplates anchored with chemical expansion bolts.
Under seismic excitation, calculated frame flexibility absorbs base acceleration while dynamic top tie beams tie racking rows into a unified structural monolith. This approach minimizes frame shear forces and protects uprights from permanent plastic deformation under severe earthquake stresses.
Cold storage facilities incur high electrical operating costs per cubic meter, making dynamic high-density storage imperative. Standard structural steel becomes brittle under sub-zero temperatures, leading to stress fractures. Our refrigeration-grade pallet rack systems utilize special low-temperature micro-alloy steel combined with cold-resistant electrostatic powder coatings.
Furthermore, in food processing cold rooms, drive-in racks and automated AS/RS stacker crane racking maximize storage density by up to 85% compared to conventional selective rack layouts, directly reducing thermal dissipation losses and lowering refrigeration power consumption.
Logistics procurement professionals must align capital equipment purchases with rapid technological shifts. Over the next five years, dynamic racking procurement will be defined by four key industry shifts:
Traditional manual gravity flow systems are rapidly integrating with Autonomous Mobile Robots (AMRs) and U-Turn Stacker Cranes. Buyers are prioritizing hybrid structural racking platforms featuring sensor mounts and precision laser alignment strips for automated shuttle integration.
Next-generation dynamic pallet flow systems feature embedded vibration and speed sensors within brake rollers. Predictive maintenance algorithms alert facility operators to bearing wear before lane jams occur, avoiding costly operational downtime.
Global buyers are shifting away from proprietary rack designs toward standardized profiles like American Teardrop, European 50mm pitch, and Canadian Redirack styles. This allows companies to reconfigure beam levels or source replacement parts without vendor lock-in.
Environmental compliance now impacts global tender evaluations. Exporters using zero-emission electrostatic powder coating processes, closed-loop water treatment systems, and recycled Q235B steel receive preference in international ESG audits.
Get authoritative answers to technical engineering and international export logistics questions.
Connect directly with our engineering team for factory pricing, custom CAD warehouse layouts, and structural load calculations tailored to your logistics demands.
