Precision-engineered racking components built for seamless integration with ASRS stacker cranes, 4-way shuttles, and heavy-duty logistics operations.
Modern supply chain engineering requires an unprecedented focus on volumetric utilization, operational throughput, and high-precision structural integrity. Automated Storage and Retrieval Systems (ASRS) featuring automated stacker cranes (stack crane storage racking) represent the pinnacle of high-density warehouse automation. Designed to operate at vertical heights ranging from 12 meters to over 40 meters, stack crane storage racking systems eliminate the human error and spatial inefficiencies inherent in traditional forklift-operated distribution centers.
China has established itself as the global manufacturing epicenter for precision cold-formed steel racking and automated material handling infrastructure. Leading Chinese manufacturers now combine advanced metallurgical engineering, robotic welding lines, and automated continuous electrostatic powder coating to manufacture ASRS structural frameworks that strictly adhere to international standards such as FEM 10.2.02, EN 15620 (Class 100/200), and ANSI/RMI MH16.1.
A complete stack crane storage racking installation functions as a synchronized electro-mechanical skeleton. Key structural elements engineered by top China suppliers include:
How leading OEM/ODM rack manufacturers maintain structural compliance and material traceability across high-bay ASRS projects.
Procured directly from top-tier steel mills (e.g., Baosteel, Shougang Group), featuring verified chemical compositions and mill test certificates (MTC) matching Q355B/S355 structural grades for maximum tensile resilience.
Utilizing multi-stage rolling mills with 18 to 26 forming passes. This gradual cold-forming process eliminates internal material stress, ensuring consistent profile geometry across 12m+ single-piece upright columns.
In-house 9-stage pre-treatment (degreasing, phosphating, silane rinsing) coupled with Swiss Gema electrostatic powder spraying guarantees corrosion protection exceeding 500 hours of salt spray testing (ISO 9227).
To assist warehouse developers and procurement directors in evaluating capital expenditure (CapEx) against long-term operational efficiency (OpEx), our engineering team has compiled a comparative technical matrix detailing structural performance across prominent high-density storage configurations.
| Storage System Type | Max Operational Height | Throughput Speed | Volumetric Efficiency | Pallet Access Type | Ideal Industry Application |
|---|---|---|---|---|---|
| Single-Deep Stacker Crane ASRS | Up to 45 Meters | Very High (> 40 pallets/hr per crane) | 85% - 90% | 100% Direct Access (FIFO) | Pharmaceuticals, FMCG, Cold Storage, Automotive Assembly |
| Double-Deep Stacker Crane ASRS | Up to 40 Meters | High (30 - 38 pallets/hr per crane) | 90% - 95% | 50% Direct Access (FILO/FIFO) | High-Volume Manufacturing, Reserve Storage, Beverage Logistics |

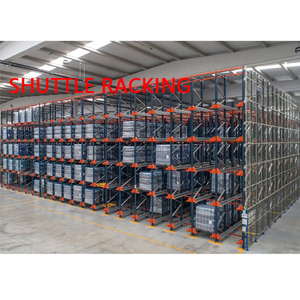

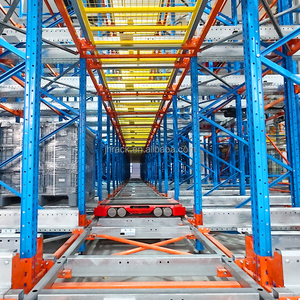

| 4-Way Radio Shuttle + Elevator | Up to 25 Meters | Moderate to High (Scalable Shuttles) | 92% - 98% | Deep-Lane Dynamic Access | E-commerce Buffer Stores, Raw Materials, High-SKU Low-Frequency |
| Drive-In Racking (Manual Forklift) | Up to 12 Meters | Low (< 15 pallets/hr per truck) | 65% - 75% | Strict LIFO Only | Seasonal Bulk Goods, Low-Budget Standard Warehousing |
| Very Narrow Aisle (VNA) Racking | Up to 18 Meters | Moderate (20 - 25 pallets/hr) | 75% - 82% | 100% Direct Access | Retail Distribution, Spare Parts, Medium Height Facilities |
As industry 4.0 matures, China’s top racking manufacturers are no longer merely steel fabricators; they are co-engineers of smart logistics ecosystems. Sourcing strategies are evolving rapidly to integrate next-generation technological advancements:
Traditional stacker cranes excel at high-speed straight-aisle transport but represent a single point of structural commitment per aisle. The industry is rapidly shifting toward shuttle-crane hybrid architectures, where stacker cranes transport 4-way radio shuttles between levels, allowing deep-lane storage flexibility combined with high-bay vertical reach. Top Chinese suppliers now offer modular beam profiles prepunched with integrated power busbar channels and optical positioning reflectors specifically designed for hybrid shuttle-cranes.
To optimize land use and reduce commercial construction timelines, international buyers are increasingly procuring Rack-Supported Buildings (Clad-Rack Systems) from Chinese factories. In these engineering marvels, the stack crane racking structural frame itself supports the building's roof, wall cladding, and insulation panels. This eliminates the need for separate concrete building columns, cutting total structural construction costs by up to 25% while maximizing internal footprint efficiency.
Next-generation stack crane racking systems incorporate embedded IoT strain gauges, piezoelectric vibration monitors, and tilt sensors at critical column joints. Chinese OEM factories are integrating mounting brackets and cable routing tracks directly into the cold-formed upright sections. Real-time stress data feeds into warehouse management software (WMS), alerting facility managers to microscopic structural shifts caused by seismic events or accidental crane collisions before structural failure can occur.
Leveraging 20+ years of engineering mastery, direct steel purchasing power, and full-spectrum international project management.
From uncoiling raw steel coils and roll-forming custom upright shapes to robotic beam welding and automatic powder coat curing—we maintain 100% operational control over manufacturing quality and delivery lead times.
Our dedicated structural engineering department provides complimentary 2D warehouse layouts, 3D BIM models, and Finite Element Analysis simulation reports ensuring your rack design meets local building codes and wind/seismic load requirements.
Uprights, beams, and diagonal braces are bundled with protective steel banding, edge guards, and vapor-barrier wrapping. Each part is clearly barcoded for swift container unloading and flawless on-site installation assembly.
Technical solutions and answers to common engineering questions raised by logistics buyers and general contractors.
Partner with China's leading stack crane racking manufacturer. Receive a complimentary CAD layout design, Finite Element structural analysis, and factory-direct quotation within 24 hours.
