Engineered to ISO, FEM, and ANSI/RMI structural standards for high-density warehousing
A comprehensive engineering guide on selecting, integrating, and optimizing high-density warehouse racking and robotic AS/RS infrastructure.
Modern global logistics and supply chain management are undergoing a seismic transformation. As real estate costs climb, labor shortages intensify, and SKU complexity accelerates under e-commerce pressure, enterprise supply chain leaders can no longer rely on static manual racking systems. The transition toward dynamic Robotic Pallet Storage Systems—specifically 4-Way Radio Shuttle Robots, Automated Storage and Retrieval Systems (AS/RS), and Autonomous Mobile Robot (AMR) integrations—represents the gold standard in high-density intra-logistics automation.
As a leading China robotic pallet storage system manufacturer and exporter, our engineering facility bridges structural steel manufacturing with modern automation integration. This technical document provides enterprise buyers, third-party logistics (3PL) providers, cold chain operators, and project contractors with an exhaustive evaluation framework for modern automated warehouse infrastructure.
Selecting the optimal pallet storage architecture requires a balance between spatial efficiency, throughput dynamic, initial capital expenditure (CAPEX), and operational flexibility. Below is an engineering comparison across primary industrial storage topologies:
| Storage Topology | Volumetric Density | Direct Selectivity | Throughput Capacity | Labor Requirement | Optimal Application |
|---|---|---|---|---|---|

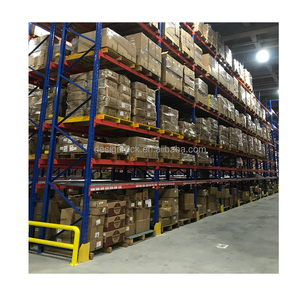

| Selective Pallet Racking | Standard (35-40%) | 100% Immediate | Medium (Forklift Dependent) | High (Manual Truck Drivers) | High SKU diversity, low volume per SKU |

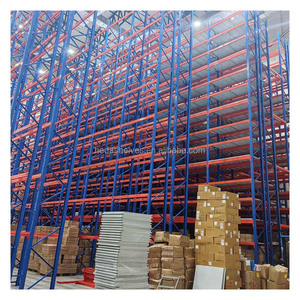

| Double Deep Racking | Medium-High (50-60%) | 50% Immediate | Medium (Reach Trucks) | Medium-High | Medium SKU volume with paired batch pallets |
| 2D Radio Shuttle System | Very High (75-85%) | FILO / LIFO per Lane | High (Automated Channel Run) | Medium-Low | Bulk storage, FMCG, beverage, cold storage |
| 4D Robotic Shuttle AS/RS | Maximum (85-92%) | Dynamic Matrix Access | Very High (Multi-Robot Fleet) | Ultra-Low (Fully Autonomous) | High bay automation, high-density matrix fulfillment |
| Crane-Based Stacker AS/RS | Ultra-High (up to 40m Height) | Direct / Double Deep | Ultra-High (Continuous Bay Run) | Fully Automated | Large-scale heavy industry, manufacturing buffers |
Combining structural steel rolling expertise with rigorous quality assurance and engineering innovation
Over two decades of dedicated R&D and cold-roll steel forming expertise. We operate continuous automated roll-forming lines capable of producing upright profiles and box beams with sub-millimeter tolerances.
Our fully automated electrostatic powder coating system guarantees superior surface protection. Every steel component undergoes 7-stage pre-treatment, degreasing, and phosphating to prevent corrosion under extreme cold-room or humid environment operations.
We provide complimentary structural simulation, finite element analysis (FEA), and 3D BIM warehouse layout planning. Our engineering team ensures your project complies strictly with EN 15635, FEM 10.2.02, and OSHA safety standards.
As enterprise supply chains evolve, purchasing managers and logistics directors must align capital investments with forward-looking technological trends. The future of pallet storage extends beyond simple physical racks into integrated cyber-physical ecosystems:
Pallet racking systems integrated with automated shuttle robots operate under continuous kinetic dynamic loads. Standard static selective racking profiles cannot withstand the operational tolerances required by robotic guidance sensors. Ensure your factory partner designs racking structures with stringent deflection limits (L/200 max) and zero structural twist.
Essential guidance for purchasing managers, structural engineers, and logistics project managers
To deliver an accurate FEA engineering proposal and CAD layout, our factory requires: (1) Warehouse structural layout drawings showing column locations, clear building height, and slab load capacity; (2) Detailed pallet specs, including pallet style, dimensions, maximum load height, and gross weight per pallet; (3) Required throughput rates (pallets in/out per hour); (4) Operating temperature parameters (standard ambient vs. cold room storage).
Yes. We regularly produce custom profile sections, including Redirack-compatible 5-hook connector profiles, teardrop-style frame punches, and heavy-duty European structural profiles. Share your hole pattern specifications, steel thickness, and clip connection details, and our toolmaker team can match your profile exactly.
We provide two primary finishing technologies: (1) High-durability thermosetting epoxy powder coating applied via automated electrostatic lines (ideal for indoor industrial warehouses and cold storage environments down to -30°C); (2) Hot-dip galvanization (HDG) conforming to ISO 1461 standards, which provides long-term corrosion protection for outdoor or high-moisture agricultural applications.
We utilize specialized export bundling protocols. Upright frames and beams are bundled using heavy-duty steel strapping, with contact points shielded by thick corrugated cardboard and protective corner guards. Small components, base plates, beam safety pins, and shuttle accessories are packed in reinforced wooden cases or metal stillages to ensure 100% component protection inside ocean shipping containers.
Our raw structural steel undergoes mill certification testing (MTC) verifying yield strength (Q235B/Q355B equivalent to ASTM A36 / S355). Manufacturing follows strict ISO 9001:2015 quality control routines. Structural rack calculations adhere strictly to European FEM 10.2.02, EN 15512, and American ANSI/RMI MH16.1 standards, supported by internal ultrasonic weld testing and destructive load testing.
While an automated shuttle system requires a higher upfront equipment investment, it typically achieves a 100% payback within 18 to 36 months. By eliminating forklift aisles, floor space utilization increases by up to 85%. Furthermore, eliminating forklift movement inside storage channels reduces structural rack damage by over 90% and cuts manual labor costs by up to 60%.
Partner direct with China's premier robotic pallet storage system factory. Request a free CAD/3D BIM layout design, structural FEA calculation, and competitive factory-direct quote today.
