Modern warehouse logistics require racking systems built for non-standard, long-dimension payloads such as structural steel tubes, aluminum extrusions, timber planks, industrial pipes, and oversized palletized inventory. Unlike conventional single-pallet selective racking, Long Load Pallet Racking and Cantilever Storage Systems must engineered to manage complex horizontal deflection, torsional shear, and asymmetrical load distribution.
When procuring high-capacity long load racking from Chinese manufacturers, procurement directors must evaluate the core structural physics underpinning upright column profiles, beam connector engagement, and cold-formed steel yield strength. Standard Q235B steel offers a minimum yield strength ($f_y$) of 235 MPa, whereas heavy-duty applications demand high-tensile Q355B cold-rolled steel (355 MPa minimum yield strength) to prevent permanent plastic deformation under full static or seismic load scenarios.
Under international EN 15512 design codes, the maximum vertical deflection ($\delta$) of load-bearing beams under maximum design load must not exceed $L/200$, where $L$ represents the clear span distance between upright columns. Maintaining this tolerance prevents beam disengagement and protects automated forklift tines during high-bay placement.

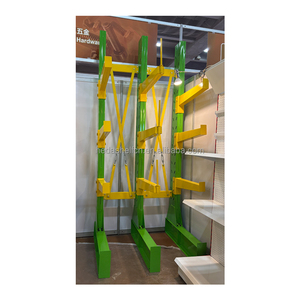

Long cargo cantilever racks operate without front upright columns, transferring bending moments directly into vertical columns through heavy-duty base plates and braced tower frames. FEA (Finite Element Analysis) modeling ensures that eccentric arm loads do not exceed the critical buckling threshold of the structural C-section or I-beam uprights.
Understanding which storage configuration matches your warehouse throughput, SKU velocity, and material geometry is crucial to optimizing volumetric storage density and minimizing operational total cost of ownership (TCO).
| Racking Architecture | Primary Cargo Type | Max Load Range (per level) | Handling Equipment Required | Space Utilization Efficiency |
|---|---|---|---|---|

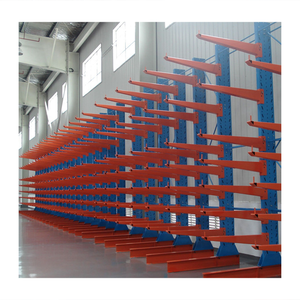

| Heavy Duty Cantilever Rack | Pipes, Lumber, Bars, Sheets | 1,000 kg – 6,000 kg / Arm Set | Side Loader / Multi-Directional Forklift | High (Eliminates aisle post constraints) |
| Industrial Longspan Shelving | Hand-Loaded Boxes, Spare Parts | 300 kg – 1,000 kg / Level | Manual Picking / Order Pickers | Medium to High (Multi-tier integration) |

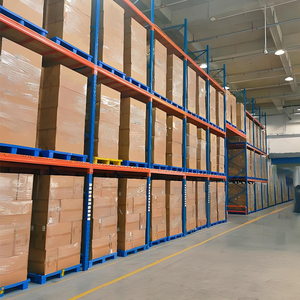

| Wide-Aisle Selective Pallet Rack | Standard Pallets, Oversized Crates | 1,000 kg – 4,500 kg / Level | Counterbalance / Reach Trucks | Standard (100% SKU Direct Accessibility) |

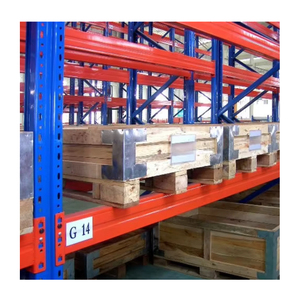

| Double-Deep Long Cargo Rack | Homogeneous Long Unit Loads | 2,000 kg – 4,000 kg / Level | Deep-Reach Pantograph Forklift | Very High (Reduces overall aisle count by 50%) |
As global supply chains shift toward automated material handling, e-commerce mega-hubs, and sustainable facility operations, the global procurement strategy for warehouse rack infrastructure is undergoing a fundamental transformation. Procurement managers must position their supply chains to leverage four critical technological shifts:
Future long load racking systems are no longer designed solely for human forklift drivers. Bottom shelf clearance, baseplate positioning, and floor guide rails are increasingly optimized for AGVs and Heavy-Payload AMRs. Racking uprights now integrate sensor reflector cutouts and laser-guided positioning targets for automated long-bar stock retrieval.
Environmental standards demand thermosetting epoxy-polyester coatings with zero VOC emissions and high salt-spray resistance (ISO 9227 tested up to 500 hours). For high-humidity cold storage and outdoor long-stock yards, hot-dip galvanizing (HDG) to EN ISO 1461 standards ensures a 25+ year maintenance-free operational life.
Global logistics hubs favor modular profile designs that maintain interchangeability with teardrop, Redirack, or European 50mm pitch hook configurations. This allows facility managers to expand existing long-span bays without scrapping structural capital assets.
Leading Chinese racking factories now export full 3D REVIT / IFC Building Information Modeling (BIM) files alongside physical shipments. This enables project managers to simulate warehouse fire sprinkler clearing, lighting placement, and seismic load behavior prior to container discharge at the destination port.
Precision manufacturing is the baseline of structural integrity in industrial rack systems. Structural failures rarely stem from material weakness alone; they are almost universally triggered by uneven roll-forming stress, poor weld penetration, or loose manufacturing tolerances. Modern Tier-1 Chinese suppliers mitigate these failure vectors through automated continuous production lines.
Key technological breakthroughs in factory production include:
With more than 20 years of dedicated experience in steel storage rack manufacturing, Rack Pricing Storage Solutions Co., Ltd. operates as a vertically integrated manufacturer and structural engineering consultancy for overseas industrial clients. We solve the primary friction points faced by international procurement managers: steel gauge inconsistency, delayed lead times, incomplete structural certifications, and damaged freight packaging.
We perform roll forming, punching, robotic welding, and powder coating inside our own 50,000 m² facility. Controlling raw steel coil sourcing through to final bundle packing allows us to guarantee structural steel mill certificates (MTC) with every container.
Our in-house structural engineering team provides free 2D warehouse layout designs, 3D spatial renderings, and seismic load capacity calculations tailored to your local building codes (OSHA, EN 15635, AS4084).
Upright columns and structural beams are strapped into heavy-gauge protective film bundles with steel corner guards. Contact points are cushioned to prevent powder coating scratches during multi-modal sea freight transit.
Every order includes clear part-numbered packing lists, visual loading diagrams, and comprehensive assembly manuals to reduce site installation time and contractor costs.
