Providing custom warehouse infrastructure engineered to international standards (EN 15635, FEM 10.2.02, OSHA 29 CFR 1910, RMI). Built with certified cold-rolled structural steel for maximum structural integrity.
Full capability to fabricate regional profile specifications, including 50mm, 75mm, 76.2mm (3-inch) pitch teardrop, Redirack, Dexion, Speedlock, and Superlock interlocking beam connectors.
Manufactured using high-tensile Q235B and Q355B structural steel coils. All beams undergo continuous cold-roll forming with double-C profile geometry to prevent structural deflection.
Equipped with fully automated multi-stage pre-treatment washing and electrostatic epoxy powder coating lines, delivering corrosion resistance surpassing 500-hour salt spray testing.
Explore our core industrial storage solutions engineered for heavy-duty load distribution, automated logistics, and maximized vertical cubic utilization.
An authoritative analysis on warehouse structural design, steel metallurgy advancements, automated storage integration, and modern supply chain optimization.
In modern industrial logistics, static storage engineering has transitioned from standardized structural channels to precision cold-formed thin-walled steel profiles. Leading OEM/ODM manufacturers now utilize Q355B high-yield structural steel alongside traditional Q235B grades. This transition delivers a yield strength improvement up to 45%, enabling higher load-bearing capacities per beam level while reducing overall dead weight on building foundations.
Continuous multi-stage cold roll forming creates complex upright profile cross-sections with 8 to 12 stiffness bends. These engineered ribs dramatically increase the moment of inertia ($I_x$, $I_y$) and torsional buckling resistance. Advanced finite element analysis (FEA) ensures that under maximum localized loading, horizontal beam deflection does not exceed the strict limit of L/200 (EN 15512 standard), guaranteeing zero structural deformation over decades of intensive forklift usage.
Every customized heavy-duty pallet rack engineered at our factory undergoes rigorous stress modeling, accounting for static dead loads, dynamic live pallet loads, forklift impact forces, and regional seismic zone accelerations (PGA up to 0.4g).
As global industrial land prices rise and labor expenditures increase, logistics operators are shifting rapidly from basic selective pallet racks to high-density semi-automated and automated systems. Traditional forklift-dependent layouts yield a floor space utilization rate of roughly 35-45%. In contrast, modern Radio Shuttle Racking Systems and Four-Way Pallet Shuttle AS/RS (Automated Storage and Retrieval Systems) expand warehouse volume utilization to over 85%.
Our factory OEM/ODM capabilities encompass custom track rolling, high-precision racking assembly tolerances (±1.5mm alignment accuracy over 100 meters), and seamless integration of WMS (Warehouse Management System) and WCS (Warehouse Control System) hardware interface brackets. Shuttle rails are engineered with integrated anti-derailment lip profiles and optical sensor reflectors to ensure flawless robotic vehicle navigation.
Procurement directors and 3PL warehouse engineers are evaluating storage partners based on comprehensive lifecycle metrics rather than initial steel weight alone. Key procurement trends shaping the decade include:
Evaluate load capacities, space efficiency metrics, and ideal operational use cases to select the optimal racking profile for your facility.
| Racking System Type | Space Utilization | Pallet Accessibility | Max Load / Level | Forklift Aisle Requirement | Ideal B2B Application |
|---|---|---|---|---|---|

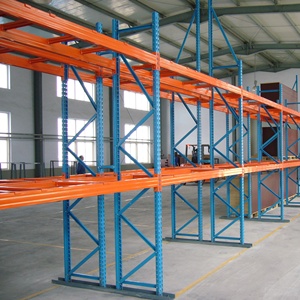

| Selective Pallet Racking | 40% - 45% | 100% Immediate Access | 1,000 kg - 4,500 kg | 3.0m - 3.8m Standard | High SKU variety, fast-moving FMCG, general warehousing. |
| Radio Shuttle Racking | 75% - 85% | FILO / FIFO (Semi-Auto) | 1,500 kg / Pallet | 2.8m (Front aisle only) | Cold storage, food & beverage, high-volume batch goods. |
| Drive-In Pallet Rack | 65% - 75% | FILO (First-In, Last-Out) | 1,000 kg - 1,500 kg | Drive-in lane width | Homogeneous bulk cargo, seasonal inventory storage. |
| 4-Way Shuttle AS/RS | 85% - 95% | 100% Automated FIFO | 2,000 kg / Pallet | Zero aisle (Crane/Shuttle) | Smart automated distribution centers, 24/7 dark logistics. |

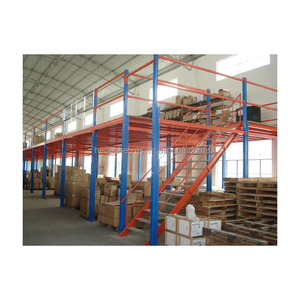

| Rack-Supported Mezzanine | 100% - 200% | Manual / Conveyor / Lift | 300 kg - 1,000 kg / m² | N/A (Multi-tier walkway) | E-commerce order picking, spare parts, mixed archive storage. |

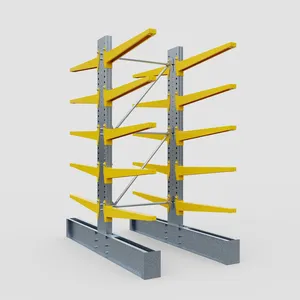

| Heavy Duty Cantilever | 50% - 60% | 100% Frontal Access | 500 kg - 3,000 kg / Arm | 3.5m - 4.5m Standard | Steel pipes, timber bundles, aluminum extrusions, sheet plates. |
From raw steel coil inspection to automated robotic welding, our quality assurance protocols strictly comply with ISO 9001 and international storage rack codes.
Every batch of cold-rolled steel coils undergoes chemical composition spectrometry and tensile strength verification (yielding minimum 235-355 MPa) prior to slitting and roll-forming.
Computer-controlled high-speed punching lines maintain pitch accuracy within ±0.1mm. Multi-pass roll forming dies ensure precise geometric profile consistency across 12-meter upright lengths.
Automated multi-axis welding robots execute continuous penetration welds on beam connectors and baseplate assemblies, eliminating human inconsistency and preventing stress fractures.
Steel components undergo an 8-stage automatic tank pre-treatment process involving degreasing, rust removal, zinc phosphating, and nano-ceramic coating for maximum paint adhesion.
Finished parts are coated with thermosetting epoxy-polyester powder (film thickness 60–90μm) and cured at 200°C, producing a scratch-resistant, impact-proof matte or glossy surface finish.
Uprights and beams are bundled with steel strapping, corner protectors, and moisture-proof plastic film wrap. Heavy timber skids optimize container space and prevent sea-freight transport damage.
Our engineering department provides free 2D layout planning, 3D structural models, and official load capacity calculations within 24 hours.
