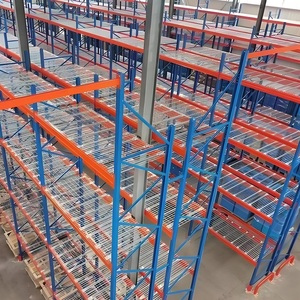

Heavy Duty Long Span Design Heavy Duty Beam Rack with Wire Mesh Shelving

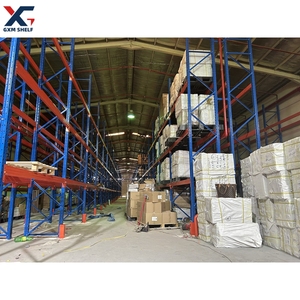

GXM Custom Adjustable Industrial VNA Heavy Duty Pallet Storage Rack
Customized Warehouse Lineside Roller Gravity Carton Flow Racking System

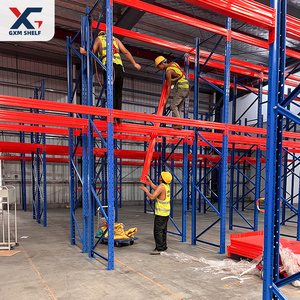

Industrial Beam Pallet Racking with Steel Wire Mesh Decks Storage System

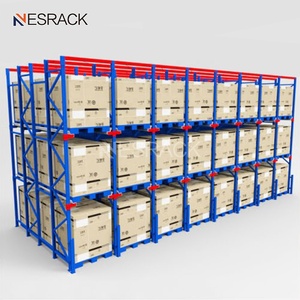

Drive-In Heavy Duty Steel Pallet Rack with 2000kg Load Capacity & Seismic Design

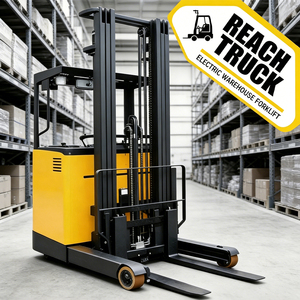

Electric Reach Truck Trilateral Standing Stacker (1t–2.5t) for High-Bay Racking

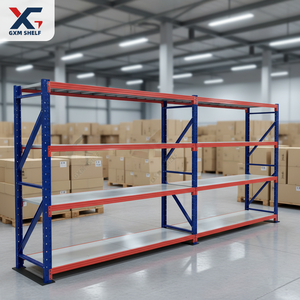

GXM Durable Multi-Tier Industrial Metal Storage Shelf & Mezzanine System

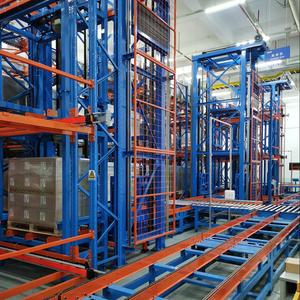

Automated Storage and Retrieval System (ASRS) High-Bay Pallet Racking
1. Technical Whitepaper: OEM/ODM Carton Flow Racking Architecture
Modern distribution centers, e-commerce fulfillment hubs, and automotive manufacturing lines face intense pressure to maximize picking density, reduce travel time, and enforce strict First-In-First-Out (FIFO) inventory rotational standards. As a premier OEM/ODM Carton Flow Racking Factory and Exporter with over 20 years of structural steel manufacturing experience, Rack Pricing Storage Solutions Co., Ltd. delivers high-efficiency dynamic gravity storage systems engineered to solve high-volume split-case picking challenges.
75%
Travel Time Reduction
300%
Picking Throughput Boost
0.05
Low Rolling Friction Coeff.
100%
FIFO Compliance Guarantee

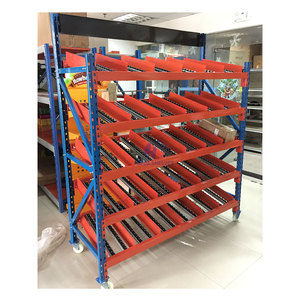

Carton flow racking (also designated as gravity roller rack, lineside flow rack, or tote flow racking) operates on an inclined wheel bed equipped with high-durability polyethylene or aluminum rollers. When cartons or plastic totes are loaded from the rear loading aisle, gravity smoothly slides them forward toward the front picking face at a controlled gradient. As a picker removes the front container, the trailing items automatically index forward to fill the vacant position.
Physics-Engineered Gravity Tracks
Our engineering team calculates pitch slope dynamics (typically between 3.5° and 5.0°) based on specific packaging friction coefficients, carton bottom rigidity, and total pay-load weights (ranging from 5 kg to 80 kg per tote). By segregating the stocking aisle from the picking aisle, operators eliminate traffic bottlenecks, dramatically improving worker safety and operational speed.
- Continuous Roller Track vs. Wheel Bed: Available in full-width galvanized steel rollers or modular multi-wheel Polypropylene (PP) track beds.
- Integrated Drop-In Lane Dividers: Tool-less adjustable dividers ensure straight tracking without carton jamming or lateral deflection.
- Tilt Tray Pick Face Options: Ergonomic 15° to 30° presentation trays optimize visibility and manual reach for fast-moving SKUs.
2. Custom OEM & ODM Engineering Capabilities
Every industrial supply chain has distinct dimensional constraints, SKU profiles, and material handling workflows. Our OEM/ODM service empowers enterprise procurement teams, racking distributors, and system integrators to request fully customized carton flow modules tailored to precise structural standards.
Engineering Parameters & Customizations Available:
- Structural Steel Selection: High-yield Q235B and Q355B cold-rolled steel profiles engineered to conform with ANSI/MH16.1 (RMI), FEM 10.2.02, and EN 15512 structural design codes.
- Track Pitch & Slope Tuning: Variable pitch adjustment brackets (50mm / 75mm pattern spacing) allow precise tuning for varied package materials including corrugated paperboard, molded plastic crates, wood boxes, and steel tote bins.
- Wheel Material Specifications: Premium High-Density Polyethylene (HDPE) wheels with steel axles for low noise (-65dB operation), or heavy-duty steel bearing rollers for high-impact industrial applications and sub-zero cold storage facilities (-30°C).
- Custom Powder Coating & Corrosion Protection: In-house automatic electrostatic powder coating lines providing 80–120 micron film thickness in all standard RAL colors, alongside pre-galvanized or hot-dip galvanized (HDG) finishes for harsh chemical environments.
Information Gain Insight for B2B Buyers: Unlike generic off-the-shelf shelving, custom ODM carton flow tracks can be integrated directly into existing pallet rack upright profiles (including Teardrop, Redirack, Dexion, and Speedlock styles) using our universal beam adapter brackets—reducing capital expenditure (CAPEX) by utilizing existing building steel structures.
3. Storage System Engineering Benchmark Comparison
To assist warehouse operations directors and logistics engineers in selecting the optimal order-picking technology, the table below provides a comprehensive technical comparison between Carton Flow Racking and alternative warehouse storage configurations.
| Performance Metric |
Carton Flow Racking |
Selective Pallet Rack |
Push-Back Racking |
Pick-to-Light Flow Racks |
| Inventory Rotation |
100% Strict FIFO |
Random / LIFO or FIFO |
100% LIFO |
100% Strict FIFO |
| Storage Density Index |
High (80–85% Utilization) |
Moderate (50–60% Utilization) |
Very High (75–80%) |
High (80–85% Utilization) |
| Operator Travel Distance |
Minimised (-70%) |
High (Full Aisle Travel) |
Moderate |
Minimal (-80%) |
| Picking Throughput (Picks/Hr) |
250 – 450 picks/hr |
60 – 120 picks/hr |
80 – 150 picks/hr |
400 – 700 picks/hr |
| Item Compatibility |
Cartons, Totes, Small Parts |
Full Pallet Loads |
Palletized Goods |
Cartons & Split Cases |
| Relative CAPEX Investment |
Moderate / High ROI |
Low Initial CAPEX |
Moderate / High |
High (Tech Integrated) |
4. Future Procurement Trends in Industrial Flow Racking (2025–2030)
As global e-commerce supply chains shift toward hyper-local micro-fulfillment centers (MFCs) and automated material handling environments, procurement strategies for carton flow racks are undergoing rapid evolution. Key industry trends driving next-generation purchasing decisions include:
AMR & AGV Lineside Feeding Integration
Modern smart factories are pairing rear-loading carton flow racks with Autonomous Mobile Robots (AMRs) for hands-free replenishment. Dynamic sensor bays automatically signal AGVs when roller lane inventory drops below safety stock levels.
Modular Click-Lock Track Architecture
Procurement heads are prioritizing modular flow beds that require zero tools for re-pitching or lane adjustment. Rapid SKU reshuffling allows warehouses to reconfigure lane widths within minutes during peak seasonal demand.
Sustainable Green Steel & Recyclables
Global ESG mandates require exporters to verify low-carbon steel sourcing and 100% recyclable thermoplastic roller materials. Our production utilizes eco-certified steel coil and closed-loop powder recovery systems.
5. Enterprise Manufacturing Excellence & Quality Assurance
At Rack Pricing Storage Solutions Co., Ltd., structural integrity and precision tolerances dictate our operational footprint. Operating state-of-the-art cold roll-forming lines, automated robotic welding cells, and continuous surface treatment channels, we guarantee repeatable manufacturing quality for international export orders.
Rigorous Quality Control Protocol
Every carton flow frame and roller track component undergoes rigorous physical testing prior to bundling and container loading:
- Raw Material Mill Certification: Complete traceability with EN 10204 3.1 chemical and mechanical tensile strength testing for all raw steel coils.
- Deflection & Static Load Testing: Beam and frame loading verification under 1.5x safe working load (SWL) safety factor limits to prevent permanent deformation.
- Cycle Life & Wear Resistance: Roller track wheels subjected to 100,000 continuous impact and rolling resistance test cycles under maximum design pay-loads.
- Salt Spray & Finish Adhesion: ASTM B117 salt spray testing validating over 500 hours of corrosion resistance for powder-coated profiles.
6. Frequently Asked Questions (Procurement & Technical FAQ)
Direct technical answers to common queries submitted by global logistics contractors, racking distributors, and procurement managers.
How do you calculate the proper slope gradient for custom carton flow lanes?
The standard incline angle ranges between 3.5° and 5° (approx. 0.5 to 0.75 inches of drop per foot of lane depth). The precise gradient is calculated based on carton weight, bottom surface stiffness, wheel density, and ambient operating temperature. Our engineers perform dynamic testing with sample packaging during the design phase to eliminate line-stoppage or high-velocity collisions at the pick face.
Can your OEM carton flow tracks retrofit into existing competitive racking frames?
Yes. We design and manufacture universal beam adapter brackets, step-beam drop-in hangers, and side-rail mounts compatible with all major global rack profiles—including North American Teardrop, European Dexion/P90, Redirack, and Speedlock systems. You do not need to replace your upright frames to upgrade to high-density carton flow.
What wheel types are available for extreme temperature environments like cold rooms?
For cold storage facilities operating down to -30°C (-22°F), standard plastic wheels can become brittle. We supply specially formulated high-impact polycarbonate or nylon 6 blended wheels with stainless steel axles and specialized low-temperature synthetic lubricant to prevent wheel freeze and structural cracking.
What is the standard lead time for OEM/ODM volume container orders?
For standard customized configurations, production lead time is typically 15 to 25 days from final CAD drawing sign-off and deposit receipt. Initial engineering CAD and 3D layout proposals are delivered free of charge within 24 to 48 hours of initial inquiry.
How is carton flow racking packed to prevent freight damage during ocean transit?
Upright frames, structural beams, and flow tracks are wrapped in protective heavy-gauge plastic film, fitted with reinforced corner guards, and securely steel-strapped to heavy wooden skids. Small hardware, roller tracks, and dividers are organized in heavy corrugated export boxes labeled by part numbers for rapid on-site assembly.
Do you provide international engineering structural calculation reports?
Yes. Our structural engineering department provides comprehensive load capacity certifications and finite element analysis (FEA) calculation reports conforming with RMI (ANSI MH16.1), FEM 10.2.02, or EN 15512 standards upon client request.
