Whitepaper: High-Density Drive-In Pallet Racking Mechanics & Sourcing Optimization
Modern industrial real estate demands unprecedented volumetric storage density. As land acquisition and warehouse construction costs continue to surge globally, industrial supply chain operators are shifting away from low-density selective storage toward high-density compact racking solutions. Among these, Drive-In Pallet Racking engineered and manufactured by specialized Chinese export factories stands out as the most cost-effective solution for homogenous, high-volume palletized inventory.
1. Structural Anatomy & Load Mechanics of Drive-In Racks
Unlike standard beam racking where horizontal beams brace every upright frame across the front face, Drive-In racking requires forklifts to physically enter the storage bays to deposit and retrieve pallets. This architectural requirement eliminates conventional load-bearing front beams, placing unique structural demands on the system:
- Continuous Top Tie-Beams & Horizontal Bracing: Overhead tie beams connect adjacent frames across the top of the drive-in lanes, forming a rigid upper portal frame that resists torsional sway.
- Cantilevered Arm Supports & Heavy-Duty Pallet Rails: Pallets rest on cold-formed continuous steel runner rails supported by heavy-gauge structural bracket arms bolted to the upright columns. Rail profiles feature tapered entry guides to center incoming pallets smoothly.
- Heavy-Section Cold-Rolled Uprights (Q355B Steel): To accommodate dynamic forklift impact risks within narrow lanes, upright profiles utilize high-strength steel (yield strength ≥ 355 MPa) with multi-point cold-formed bends for heightened moment of inertia.
- Floor Guide Rails & Anchor Systems: Heavy steel angle floor rails run along the base of the storage lanes, serving a dual purpose: guiding forklift wheels safely down the lane and protecting upright bases from wheel collision damage.
2. Drive-In (LIFO) vs. Drive-Through (FIFO) Architectural Configuration
Procurement directors must distinguish between two main structural layouts when specifying high-density racking from Chinese factories:
Drive-In Systems (Single-Access / LIFO): Forklifts enter and exit through the same front face. The rear of the lane is reinforced with structural X-bracing, providing maximal longitudinal stability. This setup is ideal for seasonal goods, cold storage holding bays, and products with indefinite shelf life.
Drive-Through Systems (Dual-Access / FIFO): Forklifts enter from the rear face to load and exit from the front face to unload (First-In, First-Out). Because back-bracing cannot be utilized across open lanes, Drive-Through systems require top portal bracing modules and upgraded upright structural gauges to compensate for reduced longitudinal rigidity.
3. Technical Performance Comparison Matrix
The following engineering data table highlights structural performance parameters across prominent industrial storage systems manufactured in China:
| Racking System Type | Storage Density Rating | Space Utilization (%) | Stock Access (SKU Selectivity) | Forklift Aisle Requirement | Cost per Pallet Position (USD Est.) |
|---|---|---|---|---|---|
| Drive-In Pallet Racking | Very High (LIFO) | 75% – 85% | Low (1 SKU per lane) | Minimal (Perimeter aisles only) | $45 – $75 (Optimal ROI) |
| Selective Pallet Racking | Low (FIFO/LIFO) | 35% – 45% | 100% Immediate Selectivity | Large (3.2m – 4.2m width) | $35 – $55 |

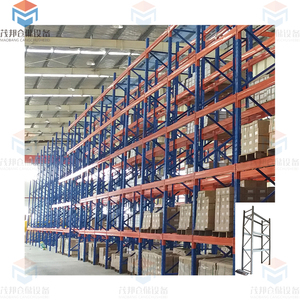

| Push-Back Racking | High (LIFO) | 65% – 75% | Moderate (1 SKU per beam level) | Standard Front Aisle | $90 – $140 |
| Radio Shuttle Automation | Ultra High (LIFO/FIFO) | 80% – 90% | High (Automated SKU retrieval) | Minimal Access Aisle | $160 – $240 |
Engineering Calculation Example: Cold Storage Footprint Efficiency
In a 3,000 m² cold storage facility operating at -22°C, operational energy costs dominate overheads. Replacing Selective Racking with a 6-deep Drive-In Pallet Racking layout increases pallet capacity from 2,400 to over 4,800 positions within the exact same refrigerated volume—effectively halving the electrical power cost per stored pallet.
