High-density warehouse racks engineered to EN 15512, RMI, and ISO 9001 standards. Designed for extreme load reliability and seamless forklift or robotic integration.
For international procurement directors, 3PL logistics managers, and facility designers, evaluating top China pallet racking suppliers requires rigorous validation of raw material grades, structural safety factors, and end-to-end quality control.
We exclusively procure premium Q235B and Q355B structural steel grades from leading state mills (BaoSteel, Shougang). This guarantees uniform wall thickness, exceptional elasticity coefficients, and structural resilience under dynamic impact loads.
Our fully automated electrostatic powder coating system includes multi-stage pre-treatment, chemical degreasing, zinc phosphating, and 200°C thermal curing—yielding an ultra-durable 60–90 micron epoxy-polyester surface finish conforming to RAL standards.
Every facility layout is modeled by certified structural engineers using Finite Element Analysis (FEA) and dynamic simulation software to optimize beam profile selections, upright frame geometry, seismic anchoring, and clear aisle dimensions.
Selecting the correct storage topology demands a trade-off analysis between SKU selectivity, cube utilization density, material handling automation, and capital investment.
| Racking Topology | Storage Density | SKU Access Rate | Handling Equipment | CapEx Benchmark | Ideal Application |
|---|---|---|---|---|---|

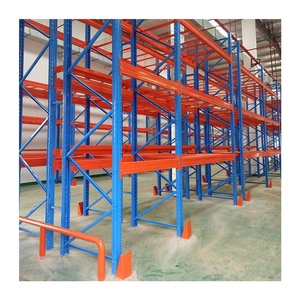

| Selective Pallet Racking | Standard (40-50%) | 100% Immediate | Counterbalance / Reach Truck | Low / Base | High SKU variety, fast FMCG turnover |
| Double-Deep Racking | High (60-65%) | 50% Direct | Deep-Reach Forklift | Low-Medium | Cold storage, bulk manufacturing SKUs |
| Radio Shuttle System | Ultra-High (75-85%) | Batch Access | Shuttle Cart + Forklift | Medium-High | Beverage, seasonal stock, high-volume LIFO/FIFO |
| 4-Way Automated Shuttle | Maximum (85-92%) | Automated Dynamic | Robotic Shuttle + Vertical Lifter | High (Automation) | E-commerce fulfillment centers, smart logistics |
| ASRS Stackers System | Maximum (90%+) | Automated Direct | Automated Stacker Cranes | Enterprise CapEx | High-bay warehouses (>20m), pharmaceutical distribution |
As international supply chains shift toward hyper-efficiency and automated material handling, procurement teams sourcing warehouse storage equipment from China must look beyond surface pricing. Structural engineering integrity, steel metallurgy, safety compliance standards (such as EN 15635 and OSHA 29 CFR 1910), and precise tolerance controls dictate the operational lifespan and safety of your warehouse asset.
Information Gain Benchmark: Top China exporters do not simply supply steel channels; they engineer cold-formed structural profiles matched precisely to your facility's seismic zone rating, slab load-bearing capacities, and forklift mast clear heights.
The structural backbone of any high-bay selective or shuttle pallet racking system is the cold-formed upright column. Top manufacturers employ continuous multi-pass roll-forming machines capable of working high-yield steel up to 3.0mm in thickness without micro-cracking the bend radii. Key considerations include:
Box beams and step beams form the primary horizontal load support surfaces. Under standard international structural codes (ANSI MH16.1 and FEM 10.2.02), horizontal beam deflection under full static load must never exceed L/200 (where L is the clear span distance of the beam).
Advanced engineering suppliers utilize robotically welded end-connectors with 3 to 5 claw hooks that lock firmly into the upright column keyholes. Safety auto-locks (drop-out prevention pins) are mandatory on all beam connections, requiring a minimum upward displacement force of 1,000 N to dislodge, thereby eliminating catastrophic beam dislodgement risks during pallet loading.
The global warehousing landscape is undergoing a rapid transition from traditional manual fork-truck loading to semi-automated and fully automated robotic systems. When sourcing from China's leading OEM/ODM suppliers, forward-thinking enterprises are adopting two dominant intelligent storage paradigms:
Utilizing wireless-guided shuttle vehicles operating inside dedicated drive-in lane tracks. 4-Way shuttles navigate both longitudinal depth and transverse aisle tracks, enabling autonomous multi-level pallet transportation controlled via WMS/WCS software integration.

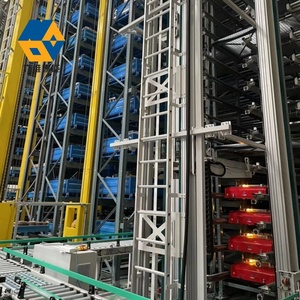

Custom-built automated stacker crane racking reaching heights over 30 meters. These rack-supported building structures double as the building envelope, providing maximum space optimization and instantaneous inventory tracking for high-throughput fulfillment hubs.
Industrial racking environment resilience depends heavily on surface finishing. Standard warehouse environments require electrostatic epoxy powder coating with a minimum dry film thickness (DFT) of 60 to 90 microns. Pre-treatment chemical immersion (or continuous inline spray washing) must include degreasing, water rinsing, and iron/zinc phosphating to create an anti-corrosive chemical bond before powder application.
For outdoor storage platforms, chemical fertilizer warehouses, or cold-chain refrigeration facilities operating in high humidity environments (-30°C to +4°C), buyers should specify Hot-Dip Galvanizing (HDG) conforming to ISO 1461, providing a protective zinc layer exceeding 65–85 microns for multi-decade rust immunity.
Export packaging determines whether components arrive undamaged. Experienced China exporters employ systematic bundle grouping:
Direct expert answers addressing engineering specifications, profile compatibility, international compliance, and custom ordering protocols.
To prepare an accurate structural layout and pricing estimate, please provide: building interior dimensions (length, width, clear height under trusses), concrete floor slab thickness and strength rating, column placement grids, pallet footprint dimensions (width × depth × height including cargo), total pallet unit weight, forklift turning radius/reach height, and environmental parameters (operating temperature, local seismic requirements).
Yes. Leading OEM suppliers manufacture fully interchangeable profiles for major global markets. This includes North American 2-inch and 3-inch center Teardrop systems, Canadian Redirack patterns, European Dexion/Speedlock 50mm pitch profiles, and Australian 76.2mm pitch standards. Send your beam connector measurements or sample photos for engineering cross-matching.
For standard dry warehouses, electrostatic epoxy powder coating (60–90 µm) in any RAL color provides optimal protection. For freezer rooms (-25°C to -30°C) or highly corrosive environment exposure, Hot-Dip Galvanizing (HDG) to ISO 1461 standards is recommended to eliminate surface flaking and internal tube corrosion.
Our engineering calculations align strictly with EN 15512 (European racking code), ANSI MH16.1 (US RMI standard), and FEM 10.2.02 guidance. Factory quality assurance includes raw steel mill certification review, weld penetration test sampling, powder adhesion cross-hatch testing, and full-scale bay loading verification prior to mass production.
