Explore our flagship heavy-duty and medium-duty pallet racking systems manufactured direct from our 40,000㎡ production center using certified high-yield Q235B/Q355B structural steel.
A Comprehensive B2B Technical Blueprint for Supply Chain Directors, Warehouse Engineers, and Industrial Procurement Operations
In modern industrial warehousing and third-party logistics (3PL) management, structural integrity, load-bearing reliability, and space optimization dictate operational profitability. As a leading manufacturer of pallet racking systems in China, our facility engineers medium and heavy-duty steel rack solutions designed to meet the rigorous demands of global supply chains. Selecting the appropriate industrial storage rack requires an in-depth understanding of structural metallurgy, finite element analysis (FEA), surface treatment parameters, and international compliance standards such as ANSI/RMI MH16.1, FEM 10.2.02, and AS4084-2012.
The primary factor determining the load stability and safety factor ($SF \ge 1.65$) of pallet racking systems is the cold-formed structural steel grade utilized during continuous roll forming. Lower-tier manufacturers often substitute structural steel with non-certified commercial steel grades, leading to localized buckling under dynamic forklift impact.
Our manufacturing plant enforces strict chemical composition and yield strength testing on every coil of raw steel received from tier-1 steel mills:
Racking structural performance is governed by the moment of inertia ($I_x, I_y$) and section modulus ($Z_x$) of the upright frames and load beams. Our factory utilizes multi-stage continuous automated cold-roll forming lines featuring up to 24 rolling passes to ensure zero internal stress concentration along the profile bends.
| Profile Type | Standard Specs (mm) | Steel Grade | Max Bay Capacity | Recommended Application |
|---|---|---|---|---|
| Medium Duty Upright | 55 × 47 / 60 × 50 (1.5 - 1.8mm) | Q235B Steel | Up to 6,000 kg | Manual hand-load shelving & light pallet stores |
| Heavy Duty Upright | 80 × 60 / 90 × 70 (1.8 - 2.5mm) | Q355B Alloy | Up to 15,000 kg | Selective pallet racking, drive-in systems |

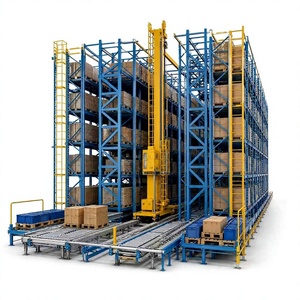

| Ultra High-Bay Upright | 100 × 70 / 120 × 95 (2.5 - 3.0mm) | Q355B Alloy | Up to 24,000 kg | Double deep, VNA racking, ASRS automated high-bays |
| Box Beam Profile | 80 × 50 to 140 × 50 (1.5 - 2.0mm) | Q235B / Q355B | Up to 4,500 kg / level | Standard palletized loads with minimal beam deflection |
| Step Beam Profile | 50 × 50 to 100 × 50 (1.5 - 2.0mm) | Q235B Steel | Up to 2,000 kg / level | Interlocking wire mesh decking & steel panel shelves |
Industrial storage systems operating in humid distribution centers, cold storage facilities (-30°C), or coastal logistics zones require advanced surface finishing to prevent galvanic corrosion and coating flaking. Our automated 7-stage pre-treatment line includes:
Compare high-density storage configurations based on floor space utilization, SKU accessibility, forklift requirements, and total capital expenditure.
Floor Space Utilization: ~40%
SKU Accessibility: 100% Direct Access
Best For: High SKU count, fast inventory turnover, standard forklift fleets.
CAPEX Cost: Low / Economical
Floor Space Utilization: ~60%
SKU Accessibility: 50% Immediate Access
Best For: Multiple pallets per SKU, bulk storage, food & beverage distribution.
CAPEX Cost: Moderate
Floor Space Utilization: ~85%
SKU Accessibility: Deep Lane LIFO/FIFO
Best For: Cold storage units, high-volume batch handling, labor cost reduction.
CAPEX Cost: Medium-High
Key technological evolutions shaping global warehouse infrastructure and supply chain engineering.
Rising global warehouse real estate costs are driving buyers from conventional racking to semi-automated 4-way radio shuttles and fully automated ASRS systems. Modern rack manufacturing must conform to tighter beam level tolerances ($\pm 1.0\text{mm}$) to support laser-guided robotic shuttles.
Global enterprises under strict ESG guidelines demand transparent carbon footprint tracking. Our factory utilizes recycled structural steel blends, zero-VOC powder coatings, and energy-efficient solar-powered curing ovens to comply with international carbon border adjustments.
With dynamic e-commerce SKU changes, procurement officers prioritize boltless adjustable racking systems that enable fast beam height reconfiguration without structural disassembly. Universal teardrop and teardrop-compatible profiles lead global export demand.
End-to-end control from raw steel slitting to container load optimization ensures superior structural durability and competitive factory-direct pricing.
Every production batch undergoes destructive loading tests, steel tensile verification, weld ultrasonic inspection, and powder paint cross-hatch adhesion testing in accordance with ISO 9001 certified QC protocols.
Our engineering team provides complimentary 2D warehouse floor plan layouts and 3D finite element stress models to optimize pallet position yield while ensuring full compliance with local seismic regulations.
Pallet racking components are heavy and bulky. Our specialized shipping unit bundles upright frames and beams with protective corner guards, maximizing container CBM and weight limits to reduce ocean freight costs per pallet position.
Expert technical responses to common questions raised by B2B warehouse equipment buyers and project engineers.
Contact our engineering sales team today for a free warehouse CAD layout, structural load calculation, and direct factory quotation.
