China Top Light Duty Pallet Racking Manufacturer & Suppliers

Comprehensive Technical Whitepaper: Selecting, Engineering, & Sourcing Light-to-Heavy Duty Pallet Racking from China

Modern supply chain optimization depends on intelligent space utilization. As global logistics hubs face rising land acquisition costs and labor shortages, vertical storage efficiency has evolved from a passive facility consideration into a competitive business lever. Selecting an ideal warehouse storage framework requires understanding steel metallurgy, structural mechanics, warehouse throughput dynamics, and international safety compliance.

1. Metallurgical Standards & Engineering Physics of Pallet Racks

The foundation of any high-capacity pallet racking system resides in raw material selection and cold-roll forming precision. China's top storage rack manufacturers utilize certified prime steel coils, predominantly grade Q235B (yield strength $f_y \ge 235 \text{ MPa}$) for standard light-to-medium installations, and high-tensile Q355B (yield strength $f_y \ge 355 \text{ MPa}$) for heavy-duty columns exceeding 8 meters in height.

During the roll-forming process, flat coil steel passes through progressive roller stations that cold-work the metal into specialized geometric profiles—such as upright omega profiles ($\Omega$) with multiple return flanges. These multi-stage return bends dramatically enhance the second moment of area ($I$), suppressing torsional-flexural buckling under axial compressive loads without needlessly inflating overall tare weight.

2. Light Duty vs. Heavy Duty Pallet Racking: Strategic Selection Criteria

Procurement teams frequently navigate ambiguous terminology. Clarifying the structural boundaries between Light Duty Pallet Racking (and boltless shelving) versus Heavy Duty Selective Systems prevents costly structural under-engineering or wasteful over-specification.

Light Duty Systems: Designed primarily for hand-loaded merchandise, light duty boltless rivet and slotted angle systems utilize lower-gauge steel (1.0mm to 1.5mm thickness). These systems prioritize tool-free assembly, adjustable beam pitch (typically 38.1mm or 50mm increments), and modular add-on capabilities. They are ideal for fulfillment centers managing small-bin picks, automotive spare parts rooms, and retail backrooms.

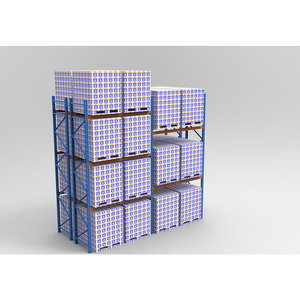

Heavy Duty & High-Bay Systems: When loads exceed 1,000 kg per pallet position, racking systems transition to heavy-duty classification. Upright frames are constructed from thicker gauge steel (1.8mm to 2.5mm+), braced with structural diagonal and horizontal channels bolted together with friction-lock fasteners. Beams transition from simple step profiles to interlocked box beams with multi-claw safety connectors that drop into upright teardrop or diamond keyholes, secured by mechanical safety pins to prevent accidental dislodgement during forklift lifting.

3. Technical Trends Reshaping Global Procurement (2026–2030)

The global material handling industry is experiencing a technology shift driven by automation, sustainability, and space optimization. Sourcing professionals must evaluate future-proof features when issuing RFQs to China suppliers:

• Convergence of Radio Shuttle Automation and Semi-Automated AS/RS: Traditional drive-in racking is increasingly replaced by 2-way and 4-way Radio Shuttle systems. Shuttle carts navigate deep channels guided by optical sensors and Wi-Fi networks, reducing forklift travel distance into rack lanes by up to 80% and eliminating column damage risks.
• Smart Surface Finishing & Low-VOC Powders: Modern production facilities are migrating from standard solvent-based paints to TGIC-free thermosetting polyester powder coatings. Advanced electrostatic lines apply thin, ultra-durable coats that resist impact chipping, humidity, and chemical abrasion while supporting zero-emission manufacturing goals.
• Hybrid Rack-Supported Mezzanine Platforms: Rather than constructing traditional structural steel mezzanines, buyers are specifying multi-tier rack-supported platforms. By using standard racking uprights as structural columns for second and third level walkways, companies double floor area at 40% lower material cost.
• Integration of High-Visibility Impact Protection: Rather than treating safety guards as afterthoughts, modern structural specs include molded HDPE (High-Density Polyethylene) upright wrap guards, heavy-gauge steel aisle end protectors, and structural wire mesh decking with under-beam support channels.

4. Total Cost of Ownership (TCO) & Container Logistics Engineering

When importing warehouse racking from China manufacturers, the EXW or FOB purchase price represents only a fraction of the total landed cost. Experienced logistics engineers calculate the volumetric packing factor ($M^3 / \text{Ton}$) to optimize container utilization during sea transit.

Furthermore, calculating structural ROI must account for installation labor speed. Features such as self-locking beam connectors, clear part-number stamping on structural components, and pre-punched baseplates drastically reduce on-site assembly hours for international installation contractors.
