CE Certified Automated Storage Solutions

CE Certified Pallet Shuttle Racking Manufacturer & Supplier

Engineering High-Density 2-Way & 4-Way Radio Shuttle Storage Systems for Global Warehouse Automation, Cold Chains, and High-Throughput Logistics

85%+
Warehouse Space Utilization
1500kg
Max Pallet Load Capacity
-25°C
Cold Storage Operability
20+
Years Manufacturing Excellence

Featured Automated Shuttle Racking Systems

Explore our CE-certified pallet shuttle equipment engineered with structural Q355B steel, laser positioning sensors, and seamless WMS integration capabilities.

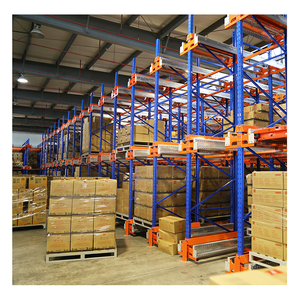

Customizable Heavy Duty Steel Pallet Shuttle Rack for Warehouse Storage Cargo & Storage Equipment OEM/ODM

Customizable Heavy Duty Steel Pallet Shuttle Rack for Warehouse Storage Cargo & Storage Equipment OEM/ODM

Get a Quote

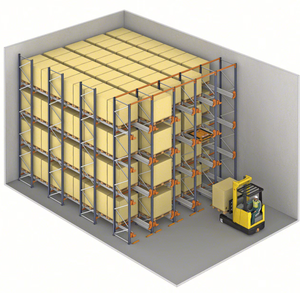

Intelligent Pallet Rack System 4 Way Shuttle Pallet Rack Automated Storage System Shuttle Rack

Intelligent Pallet Rack System 4 Way Shuttle Pallet Rack Automated Storage System Shuttle Rack

Get a Quote

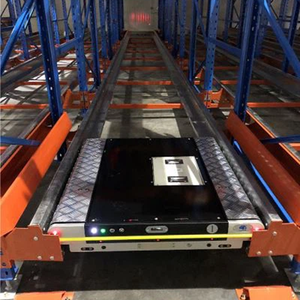

Automated Shuttle Pallet Racking System Two Way Shuttle Racking System

Automated Shuttle Pallet Racking System Two Way Shuttle Racking System

Get a Quote
Heda High Density Shuttle Rack System Shuttle Racking System Double Deep Steel Pallet Rack Storage Racking System

Heda High Density Shuttle Rack System Shuttle Racking System Double Deep Steel Pallet Rack Storage Racking System

Get a Quote
High Bearing Heavy Duty Warehouse Racking Shelf Rack System Steel Vna Pallet Racking Narrow Aisle Rack With CE

High Bearing Heavy Duty Warehouse Racking Shelf Rack System Steel Vna Pallet Racking Narrow Aisle Rack With CE

Get a Quote
Wholesale Warehouse Racking Pallet Racks Industrial Selective Pallet Racking Heavy Duty Drive In Rack System

Wholesale Warehouse Racking Pallet Racks Industrial Selective Pallet Racking Heavy Duty Drive In Rack System

Get a Quote

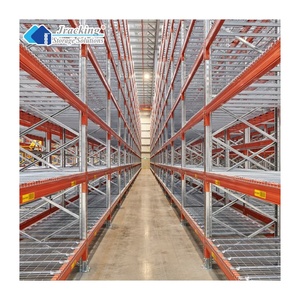

Jracking Australian Standard Industrial Racks CE Certified Heavy Duty Pallet Racking System for Warehouse Storage

Jracking Australian Standard Industrial Racks CE Certified Heavy Duty Pallet Racking System for Warehouse Storage

Get a Quote
Industrial Steel Pallet Racks for Heavy Goods Storage with 1000-3000 kg Capacity Per Level

Industrial Steel Pallet Racks for Heavy Goods Storage with 1000-3000 kg Capacity Per Level

Get a Quote

Engineering Architecture of CE Certified Pallet Shuttle Systems

A technical guide to structural mechanics, safety compliance, dynamic robotics, and control logic for modern logistics infrastructure.

Structural Mechanics & Steel Specs

Fabricated using high-tensile cold-rolled Q355B structural steel, our shuttle upright frames and customized guidance rails are engineered to tolerate dynamic kinetic loads. Cold-rolled rail sections maintain continuous dimensional tolerances within ±0.5mm, ensuring smooth radio shuttle travel, reducing mechanical friction, and eliminating systemic strain under full 1,500 kg payload capacity.

LiFePO4 Power & Induction Charging

Powered by advanced Lithium Iron Phosphate (LiFePO4) battery chemistry, each shuttle vehicle achieves up to 10 hours of continuous operational duty on a single 1.5-hour charge cycle. Integrated automated wireless induction charging stations placed inside the racking channels enable zero-touch 24/7 continuous operation without requiring manual battery swapping.

WMS & WCS IoT Interoperability

Operating over secure 5GHz Wi-Fi mesh or Industrial CAN-bus protocols, our radio shuttle fleets interface seamlessly with enterprise Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS). Standard RESTful APIs and OPC-UA connectivity allow real-time telemetry, automated stock counting, battery diagnostics, and LIFO/FIFO mode toggling.

Technical Matrix: 2-Way Radio Shuttle vs. 4-Way Intelligent Multi-Shuttle

Technical Parameter 2-Way Radio Shuttle Racking 4-Way Multi-Directional Shuttle
Primary Directional Axis Linear (Forward / Backward within lane) Omnidirectional (X-Axis, Y-Axis, Rail Crossings)
Operational Throughput High (Up to 40 Pallets / Hour per lane forklift) Ultra-High (Up to 120 Pallets / Hour via Elevator integration)
Space Optimization Up to 75% Floor Density Up to 90% Cubic Volume Utilization
Lift / Elevator Interface Manual Forklift Placement required between levels Fully Automated Vertical Reciprocating Conveyor (VRC)
Safety & Compliance Standards CE EN 15095, FEM 10.2.02, ISO 9001 CE EN 15095, EN 15635, OSHA 29 CFR 1910
Cold Storage Application Operational to -25°C with anti-condensation heaters Operational to -30°C with thermal battery casing

Future Procurement Trends in Shuttle Racking Systems

Strategic insights for procurement directors, logistics engineers, and warehouse operations executive decision-makers.

1. Transition from Manual Forklifts to Fully Automated "Dark Warehouses"

Global procurement teams are shifting away from traditional manual drive-in and selective pallet racking toward fully autonomous 4-Way Pallet Shuttle AS/RS solutions. Driven by rising industrial labor costs and global warehouse space shortages, automated shuttle systems integrated with AGVs (Automated Guided Vehicles) and AMR fleets enable lights-out warehouse operation, eliminating human collision risks and operational downtime.

2. Cold Chain Optimization & Green Energy Architecture

With rapid growth in pharmaceutical logistics and fresh food distribution, cold chain operators require storage solutions that minimize refrigerated volume air circulation loss. High-density shuttle racking reduces cubic refrigeration requirements by up to 60%. Next-generation shuttles incorporate energy-regenerative braking systems and ultra-low temperature LiFePO4 batteries that prevent thermal power degradation down to -30°C.

3. Rigorous Structural & Machinery Safety Certification Standards

Regulatory authorities in Western Europe, North America, and Australia are imposing stricter compliance frameworks regarding dynamic machinery safety and rack structural integrity. Global B2B buyers now mandate verified CE marking under Machine Directive 2006/42/EC, alongside compliance with EN 15095 (Power-Operated Mobile Racking and Shelving), FEM 10.2.02 racking structural design standards, and OSHA structural safety inspection criteria.

Why Global Logistics Leaders Partner with Rack Pricing Storage Solutions

With over two decades of dedicated research, engineering, and manufacturing in material handling systems, Rack Pricing Storage Solutions Co., Ltd. operates state-of-the-art production facilities delivering turn-key automated storage equipment to international buyers.

  • ✓
    End-to-End In-House Manufacturing: Continuous roll-forming, automatic robotic welding, and high-speed electrostatic powder coating lines in custom RAL finishes.
  • ✓
    Free CAD Layout & Structural BIM Engineering: Our structural engineers calculate load distribution, seismic tolerances, and optimal aisle configurations for your exact facility layout.
  • ✓
    Certified Quality Assurance: Strict ISO 9001 quality control protocols, CE certification, and full compliance with European EN 15635 and American RMI safety guidelines.
  • ✓
    Export-Ready Packaging & Fast Lead Times: Custom bundled components with protective edge corner guards, labeled part IDs, and optimized container loading plans to minimize ocean freight costs.

Technical Design Consultation Request

Ready to optimize your warehouse layout? Submit your facility dimensions, pallet weights, and storage throughput targets to receive a comprehensive CAD design and factory quote within 24 hours.

⚡ Free Warehouse Capacity & ROI Calculation
📐 2D / 3D Autocad & BIM Structural Layouts
🛡️ Full CE Machinery Directive Compliance Package
Get a Quote

Frequently Asked Questions for Shuttle Racking Procurement

Essential engineering and procurement answers for warehouse operations managers, system integrators, and import distributors.

What technical data is required to design a custom Pallet Shuttle Racking System? +
To generate an optimized structural layout and engineering pricing proposal, our engineering team requires:
  1. Warehouse building architectural CAD drawings showing length, width, clear height beneath roof trusses, and column grid positions.
  2. Detailed pallet specifications: Pallet dimension (W x D x H), including cargo overhanging dimensions, and maximum gross loaded weight per unit.
  3. Handling equipment details: Forklift type (Reach truck, Counterbalance, VNA), maximum lift height, and turning radius.
  4. Environmental conditions: Operating temperature range (Ambient room temperature vs. Cold storage freezing room), inventory management preference (FIFO vs. LIFO), and daily throughput requirements.
What are the primary differences between Drive-In Racking and Radio Pallet Shuttle Systems? +
While both systems provide high-density bulk pallet storage, Radio Pallet Shuttle systems significantly outshine traditional Drive-In racking in operational efficiency and safety:
  • Reduced Forklift Collision Risk: Forklifts do not enter the racking channels. The automated shuttle vehicle carries pallets inside the lanes, eliminating frame impact damage.
  • Higher Speed & Productivity: Driving down long racking channels is avoided. Forklift drivers remain at the pick face, dramatically reducing cycle times per pallet move.
  • Flexibility (FIFO / LIFO): Drive-in racking is restricted strictly to LIFO (Last-In, First-Out). Shuttle racking can easily switch between LIFO and FIFO (First-In, First-Out) operations by loading from one side and picking from the opposite aisle.
How do CE Certification and EN 15095 standards impact international shuttle racking purchasing? +
CE certification ensures that the automated shuttle cart and supporting structural framework satisfy essential safety, health, and environmental protection requirements established under European Union Directive 2006/42/EC (Machinery Directive). Compliance with standard EN 15095 verifies that electronic control anti-collision optical sensors, emergency stop circuits, anti-lift mechanisms, and dynamic brake systems are rigorously tested. This certification simplifies customs approval and satisfies local workplace safety compliance inspections (such as OSHA in the United States or WorkSafe in Australia).
How does the battery management system perform in sub-zero cold storage facilities? +
Our cold storage specialized pallet shuttles utilize industrial-grade Lithium Iron Phosphate (LiFePO4) battery packs equipped with internal heating elements and insulated thermal management enclosures. This engineering design prevents internal battery freezing and capacity drop-off in cold rooms operating down to -25°C or deep-freeze environments down to -30°C. Battery state-of-charge (SOC) is monitored via wireless telemetry, alerting operators when power levels drop below 15% so the vehicle can automatically return to the front channel charging station.
What is the typical Return on Investment (ROI) timeline for a Pallet Shuttle project? +
Most industrial facilities achieve a full capital expenditure ROI within 12 to 24 months. The payback is accelerated by three primary economic drivers:
  • Maximizing Available Floor Space: Eliminating forklift aisles yields up to 85% volumetric space utilization, postponing or avoiding costly physical warehouse extension building costs.
  • Labor & Equipment Savings: Reduced forklift fleet requirements and shorter operational travel distances lower driver labor costs, fuel, tire wear, and forklift maintenance expenses.
  • Zero Material Damage: Eliminating rack collisions dramatically cuts ongoing repair costs for damaged upright frames, beams, and damaged inventory.
What floor slab tolerance and surface flatness standards are required for installation? +
Due to the high vertical stacking heights and heavy point-load concentrations of high-density shuttle racking systems, concrete floor slabs should ideally comply with DIN 18202 or VDMA floor flatness standards (F-Min / FF/FL ratings). Our structural engineering team evaluates your slab load-bearing capacity (kPa ratings) during the design phase to design custom load-spreading baseplates and anchor bolt anchoring configurations tailored to your site geology.

Transform Your Warehouse Storage Efficiency Today

Partner direct with China's leading CE-certified pallet shuttle rack manufacturer. Get customized engineering drawings, factory-direct pricing, and technical project consultation.
