Precision-manufactured pallet racking solutions built for high load-bearing safety, automated material handling, and extreme thermal resilience.
In modern supply chain engineering, optimizing warehouse floor space while maintaining operational velocity represents a critical trade-off. CE Certified Double Row Pallet Racking Systems—often configured as double-deep selective racking or back-to-back structural bay arrays—provide a proven mathematical solution to this challenge. By mounting two rows of single-entry pallet racks back-to-back connected via heavy-duty structural row spacers, enterprise facilities eliminate up to 40% of standard forklift aisle requirements while retaining dense pallet consolidation.
From a structural mechanics perspective, double row pallet racking systems manufactured by leading OEM factories utilize cold-formed, high-tensile steel profiles (primarily grade Q235B and structural Q355B). The integrity of double-deep racking relies heavily on section modulus dynamics, frame buckling resistance under axial compression, and moment-resisting beam-to-upright connector hooks. Because double-deep operations mandate deep-reach pantograph forklifts or specialized tele-reach attachments, structural tolerances under dynamic load cycles are significantly tighter than conventional selective racking.

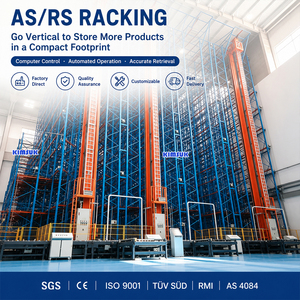

| Structural Parameter | Standard Selective Racking | Double Row / Double-Deep Racking | High-Bay AS/RS Double Row |
|---|---|---|---|
| Floor Utilization Efficiency | 35% - 40% | 55% - 65% | 75% - 85% |
| Direct Pallet Accessibility | 100% (Immediate Selectivity) | 50% (Requires 2-Deep Stock Management) | Automated Computerized Dispatch |
| Forklift Aisle Requirement | 3.0m - 3.5m (Standard Counterbalance) | 2.8m - 3.2m (Reach Truck with Extension) | 1.5m - 1.8m (Guided Crane / RGV) |
| Standard Steel Grade | Q235B Cold-Rolled Strip Steel | Q355B High-Yield Alloy Steel | Q355B / Heavy Structural Channel Steel |
| Compliance Certification | ISO 9001 / AS4084 | CE EN 15512:2020 / FEM 10.2.02 | CE EN 15512 / EN 15635 / Seismic C3 |
Compliance with CE EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) guarantees that every double-row assembly undergoes rigorous limit-state validation. Factory load calculations must model non-linear second-order global frame effects (P-Delta effects), beam deflection criteria limited to strictly L/200 of the span, and seismic ground acceleration coefficients based on localized building codes.
The global logistics landscape is undergoing a systemic transition toward automation, climate resilience, and standardized safety compliance. Procurement directors and warehouse automation integrators are no longer looking purely for raw structural steel fabricators; they require direct-factory partnerships capable of supporting future-proof automation readiness.

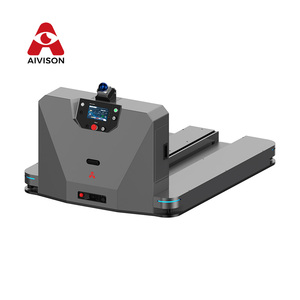

Modern double row racking systems are designed with expanded bottom-beam clearances and magnetic-guided floor plates to allow Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) to seamlessly transport pallets beneath structural bays.

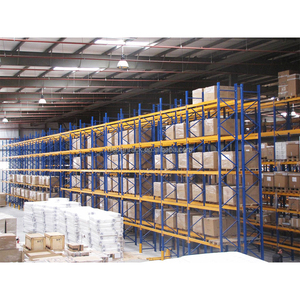

With food and pharmaceutical cold storage exploding globally, racking factories are deploying specialized hot-dip galvanized finishes (HDG) and ultra-low-temperature micro-alloyed steel capable of maintaining yield strength at -30°C without hydrogen embrittlement.
Tier-1 OEM factories are migrating to closed-loop thermosetting electrostatic powder coating lines with zero-VOC emissions, recycled steel scrap integration, and full lifecycle EPD (Environmental Product Declaration) verification for European buyers.
The production of CE-certified structural racking has evolved beyond standard stamping press lines. Leading factories now utilize fully automated continuous roll-forming mills equipped with inline laser thickness sensors and multi-station CNC punching heads. This guarantees that column pitch tolerances remain accurate within ±0.5mm over a 12-meter upright length.
Furthermore, robotic welding cells execute 360-degree continuous fillet welds on beam connector claws. This process eliminates human fatigue variations, ensuring consistent shear strength and torsional resistance across millions of structural beam assemblies exported annually. In-house ultrasonic weld flaw detection and salt spray corrosion testing chambers ensure long-term structural reliability under intense warehouse operational stresses.
With over 20 years of continuous manufacturing excellence, Rack Pricing Storage Solutions operates fully integrated steel roll-forming, automated welding, and electrostatic powder coating lines. We eliminate intermediary markups while maintaining uncompromising engineering integrity.
Automated 200-meter pretreatment and electrostatic epoxy-polyester coating line supporting custom RAL color batching and UV-resistant outdoor finishes.
Our structural engineering team produces 2D floor plans, 3D BIM models, and structural load sign-offs tailored to your specific pallet dimensions and forklift radii.
Every profile undergoes rigorous yield-point tension tests, beam connectors undergo claw-shearing validation, and frame structures match EN 15635 standards.
Components are precision-bundled with steel strapping, corner edge protectors, and vapor-barrier plastic wraps to maximize freight fill-rates and prevent transit damage.
Comprehensive engineering guidance to assist procurement managers, warehouse consultants, and structural engineers.
Contact our direct-factory engineering team today for custom CAD layout design, structural load calculations, and comprehensive product catalogs.
