Browse our factory-direct heavy-duty storage configurations, certified to European CE standards and ISO 9001/14001 manufacturing compliance.
In modern industrial logistics, static warehouse space represents one of the largest capital overheads. Designing a CE-certified compact pallet racking system demands precise structural calculation, cold-formed steel engineering, and rigorous compliance with European safety frameworks (EN 15512, EN 15635, and FEM 10.2.02 standards). As a premier global manufacturer, Rack Pricing Storage Solutions Co., Ltd. engineered high-density compact storage architectures that transform standard cubic warehouse volume into active, high-yield storage assets.
Structural Integrity Insight: Compact racking systems eliminate or minimize operational aisles, concentrating loads into dense vertical columns. The structural integrity of upright frames under combined axial compression and bending forces requires certified high-tensile steel (Q235B and Q355B structural grade steel) tested against buckling tolerances.
CE certification for industrial racking systems validates that structural profiles, connector hooks, beam-to-upright lock safety pins, and baseplate anchor configurations undergo finite element analysis (FEA) and physical destructive load testing. This ensures safety under dynamic forklift impact, seismic acceleration forces, and localized asymmetrical load distribution.
Choosing the correct compact racking topology requires evaluating SKU diversity, inventory turnaround speed (FIFO vs. LIFO), floor slab load-bearing capacity, and automated material handling integration options. Below is an engineering comparison matrix designed by our senior logistics engineering team.
| Racking Topology | Access Methodology | Volumetric Space Utilization | SKU Selectivity Ratio | Recommended Application |
|---|---|---|---|---|

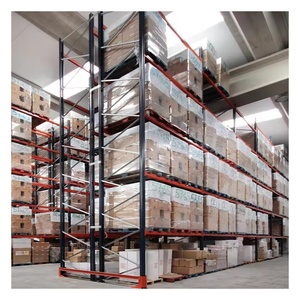

| Double Deep Racking | LIFO / Specialized Forklift | Up to 65% Capacity Increase | 50% Direct Access | Cold Storage, FMCG, Bulk SKU Batches |

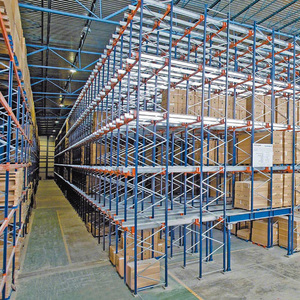

| Radio Shuttle System | FIFO & LIFO (Automated) | Up to 85% Capacity Increase | Batch Level Selectivity | E-commerce, Beverage, High-Volume Logistics Hubs |
| Drive-In / Drive-Through | LIFO (Drive-In) / FIFO (Drive-Thru) | Up to 75% Capacity Increase | Low (Per Lane Basis) | Seasonal Inventory, Homogeneous Heavy Goods |
| Push-Back Racking | LIFO (Gravity Cart Driven) | Up to 60% Capacity Increase | Medium (Per Level Selectivity) | Buffer Storage, Intermediate Production Lines |
| VNA (Very Narrow Aisle) | 100% Direct Access (Turret Truck) | Up to 50% Capacity Increase | 100% Direct Access | High Bay Warehouses, Order Picking Centers |
The industrial material handling sector is undergoing a massive shift towards fully integrated automation, carbon-neutral manufacturing processes, and structural smart monitoring. Procurement directors and warehouse project managers must account for these strategic technological trends when selecting a racking supplier.
Traditional compact racks are evolving to accommodate autonomous mobile robots (AMRs) and Automated Guided Vehicles (AGVs) with high precision guide rails and photoelectric sensors.
In-house electrostatic powder coating processes now eliminate volatile organic compounds (VOCs), offering enhanced salt-spray corrosion resistance while reducing environmental impact.
Advanced seismic modeling integrates dynamic energy dissipation baseplates and reinforced horizontal X-bracing to prevent racking frame collapse during seismic events.
With over two decades of dedicated manufacturing experience, Rack Pricing Storage Solutions Co., Ltd. operates state-of-the-art production lines equipped with automated continuous roll-forming machines, laser-cutting cells, and robotic welding stations. We eliminate supply chain risks for international importers, distributors, 3PL managers, and general contractors by bringing raw steel processing, engineering layout design, custom powder coating, and export packing completely under one certified roof.
Factory Direct Value Proposition: Our engineering department offers complimentary 2D CAD layout and 3D volumetric structural modeling. By tailoring beam profile thickness, connector teeth configurations (compatible with standard US Teardrop, European Redirack, and universal box beams), and column profiles, we deliver optimal structural load capacity at minimal steel tonnage cost.
Every shipment undergoes rigorous factory acceptance testing (FAT). We measure coil thickness tolerances, powder coating micron thickness (standard 60–80 μm), frame perpendicularity, and bolt hole alignment. Flat-packed bundles wrapped in protective corrugated edge-guards and plastic film ensure zero transport damage during ocean container transport.
Clear engineering and commercial responses to key questions raised by warehouse procurement teams.
To produce an accurate engineering design and structural quote, our engineering team requires: (1) Warehouse CAD floor plan detailing clear height, slab thickness, column grid spacing, and door positions; (2) Pallet specifications including width, depth, height, and maximum unit load weight; (3) Forklift operational specs such as minimum aisle turning radius and maximum lift height; and (4) Environmental factors like temperature (cold storage vs room temp) and local seismic requirements.
Yes. We manufacture fully compatible replacement components and system extensions for major international standard profiles, including American teardrop teardrop frames, European Redirack structural profiles, Speedlock configurations, and standard box/step beam patterns. Our engineers verify hole pitch, column dimensions, and beam locking pin geometry prior to mass production.
CE marking on structural racking certifies that products meet the safety, health, and environmental protection standards of the European Economic Area (EEA). Our manufacturing operations follow EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and EN 15635 for operational safety, backed by ISO 9001 quality management systems.
For standard dry ambient warehouses, our automated electrostatic powder coating line applies durable polyester powder in standard RAL colors (e.g., RAL 5005 Blue, RAL 2004 Orange). For outdoor applications, high humidity environments, or harsh chemical storage, we offer hot-dip galvanizing (HDG) in compliance with ISO 1461, providing decades of self-healing zinc sacrificial corrosion protection.
Because structural steel components are both heavy and long, achieving max payload weight without wasting volumetric space is crucial for lowering landed cost per pallet position. We utilize computerized container loading software to bundle upright frames, nested beams, and palletized accessories. All packages feature tagged part numbers matching your assembly drawings to facilitate fast onsite installation.
Contact our structural engineering department today for free CAD design, load capacity calculations, and factory-direct wholesale pricing.
